3 Axles Skeleton Container Trailer

3 Axles Skeleton Container Trailer

Skeletal Container Trailer is a type of semi trailer for 20ft and 40ft container transport. The Skeletal Trailer is contructed by welding the stringer, beam and front and rear beam together.

Chat Now

Product Details

3 axles Skeleton Container Trailer

skeleton trailer3


3 axles Skeleton Container Trailer is a type of semi trailer for 20ft and 40ft container transport. The Skeletal Trailer is contructed by welding the stringer, beam and front and rear beam together. The stringer, beam and front and rear beam are made of high-quality steel. In the four corners of the loading area, there are twist lock devices to fix the container. This Skeletal Container Trailer is 7200mm long, 2500mm wide and 1500mm high with 30T loading capacity.


Product Description

Specification

Name

Skeletal Container Trailer

Model

SCD9350TJZ

Overall dimension

12500 *2500 *1500mm

Loading capacity

30T

Axle brand and number

13TFuwa 2units

Kingpin

50# or 90#

Steel Spring

10/10 leaf spring suspension

The material of Main beam

The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm, middle plate is 8mm.

Tyre and quantity

12R22.5 8 12 sets

Landing gear

28T, double speed operation

Platform plate

3mm Diamond plate

Brake system

Dual Line braking system , none ABS.

Brake air chamber

Four double chamber

Electrical system

24V, 7 pin socket, One set 6-core standard Cable

Light

Tail lamp with turn signal, brake light & reflector, side lamp etc

Tool box

1 set

Spare tire carrier

2 sets

Painting

Optional

Packing

Polish with wax before shipping

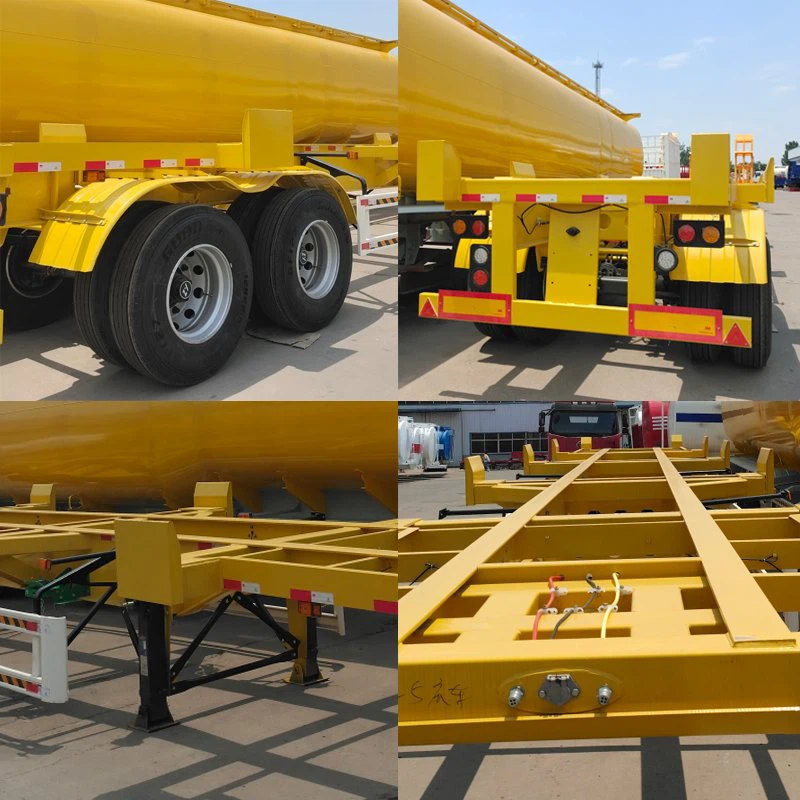

Detailed Images
