3 Axle 45m3 60ton Bulk Powder Tanker Semi Trailer

3 Axle 45m3 60ton Bulk Powder Tanker Semi Trailer

Juliet Zhu Tel:+86-0531-69985132 Mob&Wechat&What’s app:+86-187 6979 8698 Skype:1430652216@qq.com QQ:1430652216 Web: www.scdtrailer.com 3 Axle 45m3 60ton Bulk Powder Tanker Semi Trailer Description The bulk cement trailer is normlly used in powder cargo transportation such as cement,...

Chat Now

Product Details


Juliet Zhu

Mob&Wechat&What’s app:+86-187 6979 8698
Web: www.scdtrailer.com

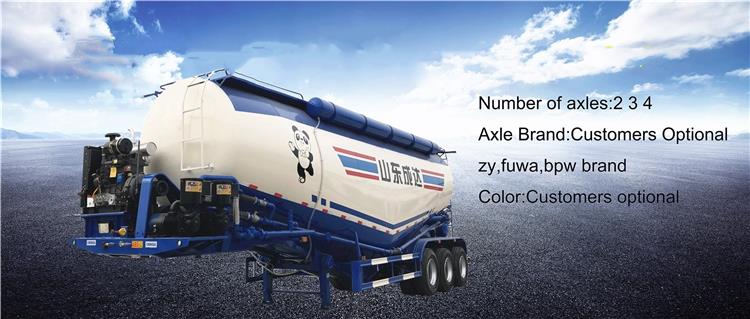

3 Axle 45m3 60ton Bulk Powder Tanker Semi Trailer

The bulk cement trailer is normlly used in powder cargo transportation such as cement, mineral powder, ashes, flour, and other
powder with diameter less than 0.1mm.The powder is discharged by compressed air generated by the air compressor. The tanker
shell is specially desgined to bear the large air pressure. The tank design helps toshorten the discharge,time and reduce the
residual during unloading. As other types of the tanker trailer, there are various options for tanker size, in which 36CMB is the
most preferred, the thickness of tanker is 6mm. The air compressor, powered by PTO or separated engine, adopts Honda or
other brands the customer named.

1. It's our own factory, we have superior quality, reasonable price, advanced technology, fast delivery, professional service from
order to shipping.
2. Optional trailer sizes and styles are available.
3. Certificate/quality approvals: ISO9001:2008, CCC, BV, SGS, etc.
4. Small order quantity can be accepted. MOQ is 1 set.
5. Exported to many countries, such as Russia, France, Southeast Asia, Africa and more than 50 countries.

Main Specification
Tare weight10000kg
Tank bodyQ235A/5mm steel sheet
End plateQ235A/6mm .ball shape
Axle3 axle FUWA 13ton
SuspensionMechanical suspension German type HJ brand
Leaf springLeaf spring 10pcs
Manhole cover500mm manhole cover .2 sets
Tire12R22.5 double star brand 12pcs
Wheel rim9.0-22.5 better brand     12pcs
Discharge valve4"disc valve
Discharge pipe4"seamless steel tube
Outlet pipe4"rubber hose.6m
KingpinJOST brand 2" bolt-in king pin
Landing gearJOST brand two-speed, manual operating ,heavy duty landing gear 24T
EngineDiesel engine: weichai brand model: 4102.
Air compressor37 KW, 0.2Mpa. 1000r/Min
Braking systemWABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
LightLED 8 side lights and 2 rear lights 2 width lamp
Air-charging system2"main hole.2"check valve .1.5"safe valve.0.4Mpa.gauge
Quadratic blow1" diameter check valve
PaintingComplete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint
AccessoriesOne standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
Date of delivery20 workdays after we received 30% of contract value T/T down payment.

1.Flatdeck container. It is normally suitable for large dimension.
2.Bulk cement or Ro-Ro. Normal choice.



1.Q: What kind of payment do you accept?
A: We could accept T/T and L/C normally. For other, please contact me for more information.
2.Q: What's your delivery time?
A: For our lowbed semi trailer, it takes 15-20 days after receiving advance payment. It depends on the specification.
3.Q: What's your after-sale service?
A: We have excellent after-sale service system and 24h liftetime service.

Hot Tags: 3 axle 45m3 60ton bulk powder tanker semi trailer, China, manufacturers, factory, price, for sale
