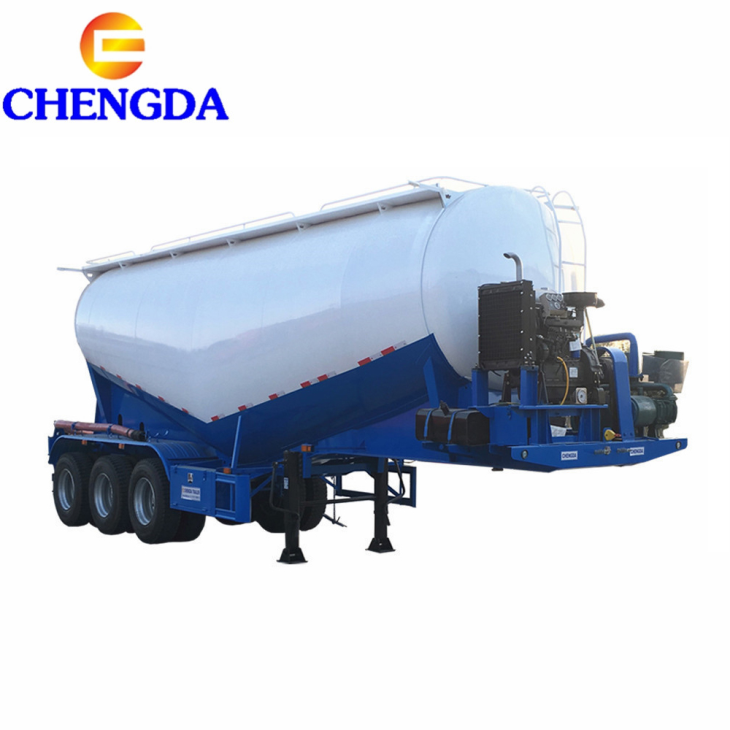

3 Axles 45M3 Bulk Cement Truck Powder Semi Trailer Bulk Cement Trailer

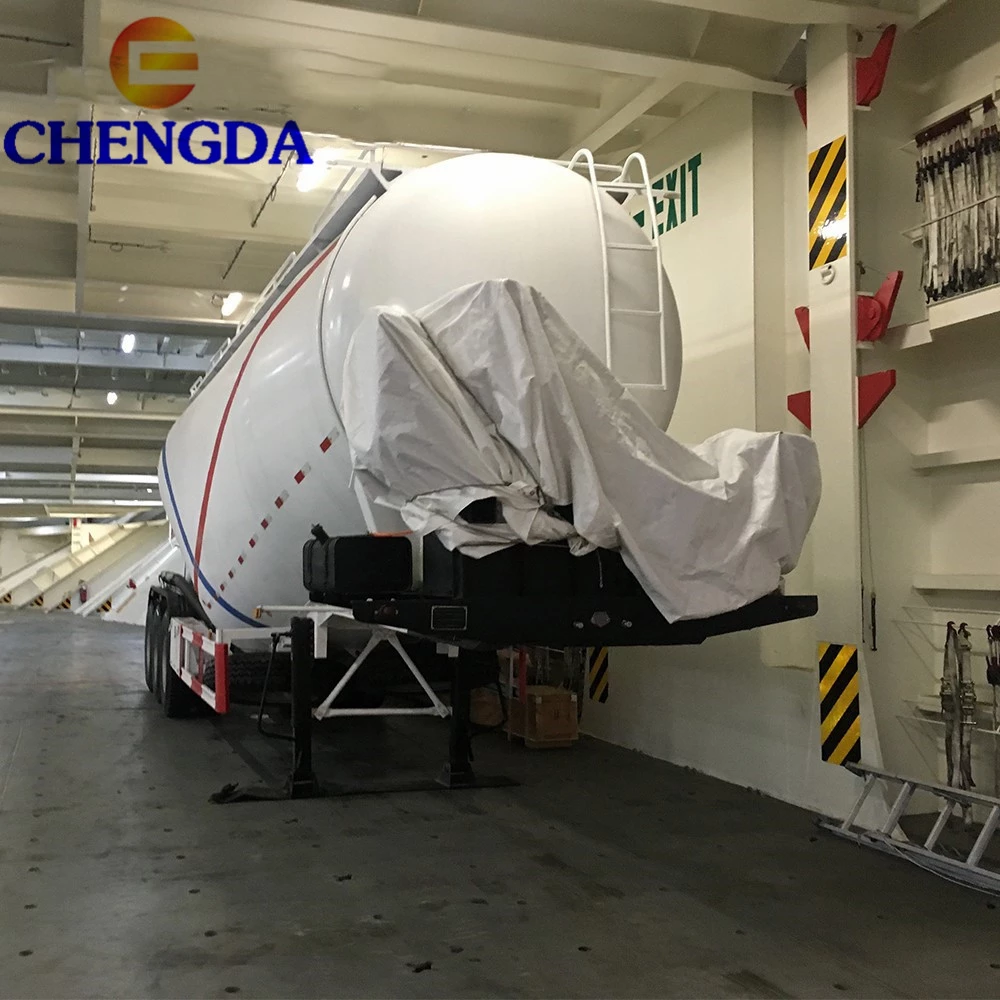

cement truck powder semi trailer bulk cement trailer Product Description Detail of product Packing & shipping Packing : Polish with wax before shipping 1. Shipping by 40HQ or 45HC container. If the width is less than 2.5M,We can choose container ship to transport. 2. Shipping by Bulk...

Chat Now

Product Details

cement trailer 77 (2)

cement truck powder semi trailer bulk cement trailer

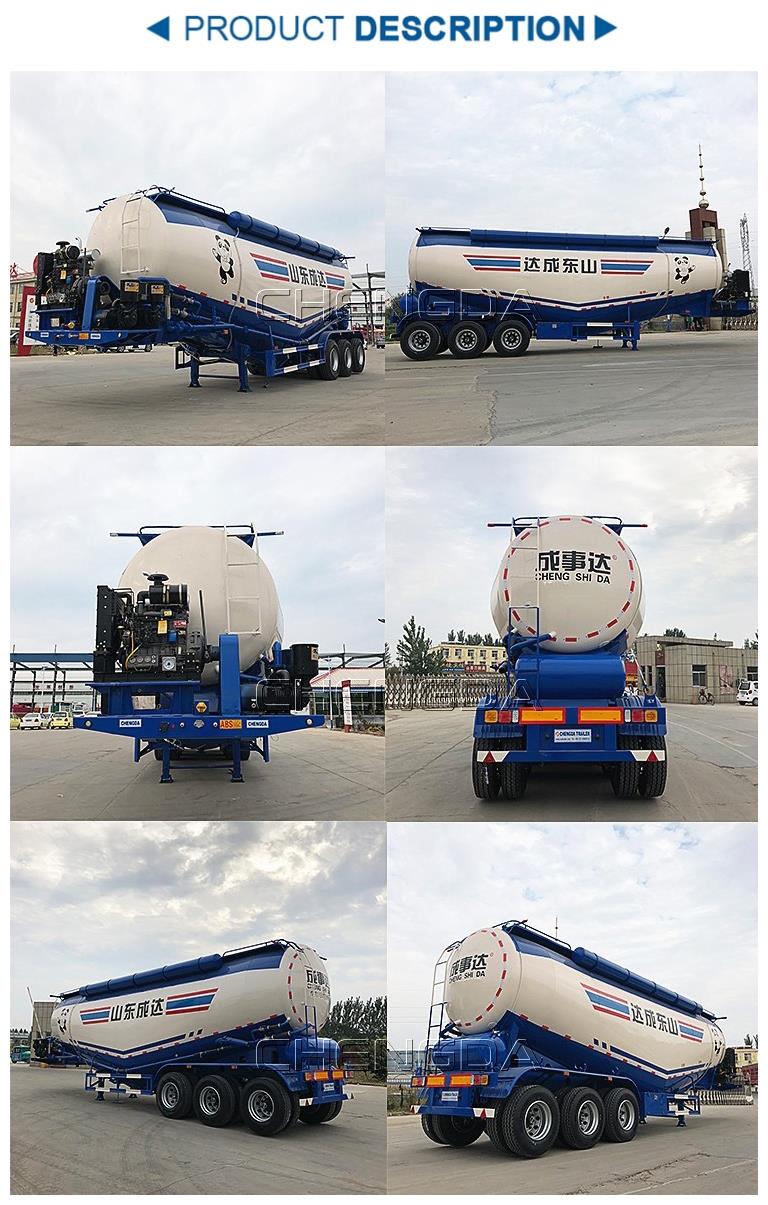

Product Description

Overall Dimension (Lx W x H)(mm)	11500x2500x3900mm
Function	transport bulk powder
Loading Weight( KG)	50000
Thickness(mm)	Tank body: Q235 5mm carbon steel End plate: Q235 5mm carbon steel
Air compressor	12m3/minute Bohai brand
Engine	Diesel engine: Weichai Tianhe 4102
Compartment	1 inner fluidized bed: air bag
Axle	3x13Ton, ZY brand optional
Suspension system	Mechanical leaf spring suspension
Leaf spring	90(W)mm13(Thick)mm10 Layer
Manhole cover	500mm manhole cover. 1 set with 1 breath valve
Landing Gear	28Ton, double speed,Yahua brand
Tire	12R22.5, Taitong brand 12units
Traction Pin	2” or 3.5” bolts in, changable
Spare Wheel Bracket	Standard
Tool Box	1 Standard
Side guard	According to customer’s requirement
Brake system	Dual Line braking system
Emergency valve	WABCO
Brake air chamber	Six big double air chambers
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core standard Cable.
