China New Tri Axles 20 & 40 Feet Container Side Loader Trailer

Product Details

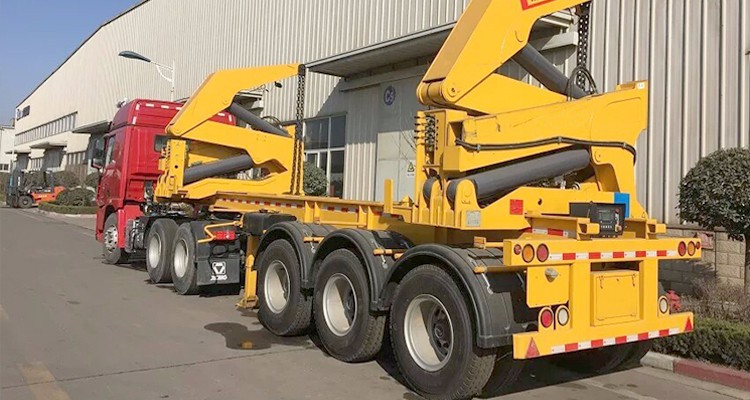

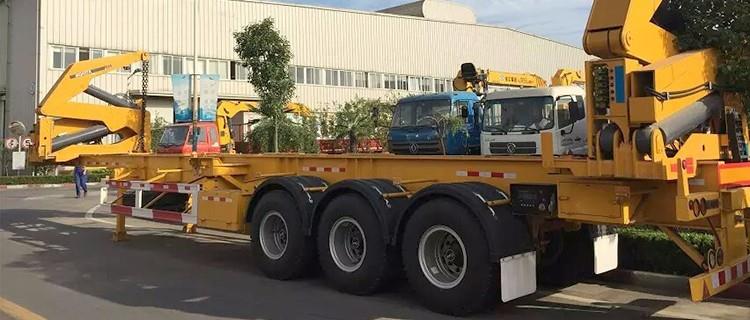

Container side loader trailer has its own hydraulic lifting device at the front and rear, which can be used to transport and transport containers from the side at one time. It has the advantages of large lifting capacity, large working range, wide application range, etc. It is easy to operate and has strong practicability, and is widely used in shipping. , ports, railways, warehousing, customs and other transportation fields.
Features:
• Container side loader trailer comes with dual hydraulic lifting devices, which can provide safe and stable container lifting function.
• Before hoisting the container, lower the two outriggers to ensure the stability of the trailer during the hoisting process and avoid the vehicle from rolling over.
•Using internationally renowned accessories to effectively ensure the service life of the side loader trailer.
SPECIFICATION OF SIDE LOADER TRAILER | |
Type | 20ft & 40ft side loader trailer |
Overall dimension | 13000 x 3000 x 1700 mm |
Container size | 20ft & 40ft |
Crane | 1. Imported electromagnetic valve |
Main beam | Carbon steel Q345B, 500mm height, upper plate 16mm, middle plate 10mm, down plate 18mm |
Side beam | 16# |
Platform | 3mm diamond plate |
Axle | Fuwa, BPW, York, L1, Zhenghua |
Tyre | 12R22.5, 385/65R22.5, 315/85R22.5, 1100R20 |
Landing gear | 28 ton |
Suspension | Mechanical or air-bag suspension with lift |
Color | As your requirement |
Optional | fuel tank, water tank, side wall, front board |
Advantages

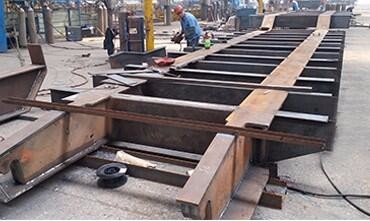

![]() | Chassis All the chassis are manufactured under standard process to ensure quality. |

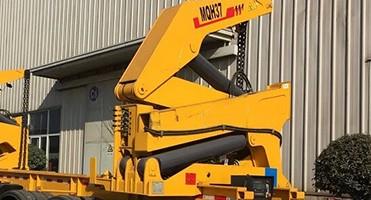

![]() | Parts 1、Adopting imported electromagnetic valve 2. Two speed operation 3. Double pumps and dual circuit hydraulic system 4. Adopting advanced safety protection system. |

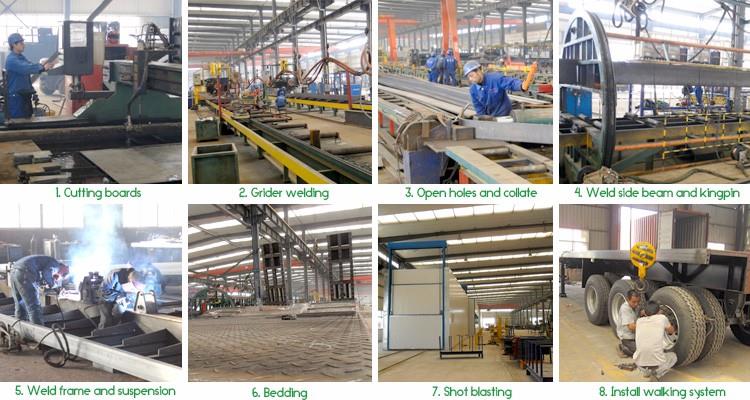

Our Factory
Standard manufacturing process to ensure the quality of the semi trailers. All our trailers are made according to your requirements!
- <
