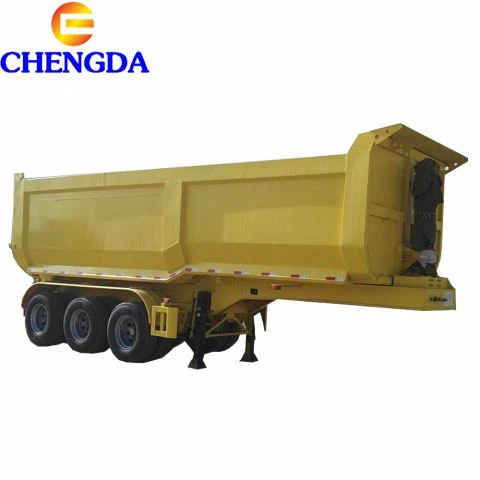

3 Axle Rear Dump Semi Trailer
Product Details
Our 3 axle rear dump semi trailers are specifically designed to meet the needs of the mining and construction industries. It's made of high-quality materials to withstand heavy use and rough terrain. With a load capacity of up to 50 tons, it is ideal for transporting sand, gravel, stones, and other loose materials.
Specification of 3 axle dump semi trailer
Name | 3 Axle Tipper Semi Trailer |
Dimensions | 9300*2500*3400 |
Inner Dimension | 25 Cubic Meters |
Loading capacity | 30-80 Tons |
Axle brand and number | 13T HJ 3units |
King Pin | 50# JOST |
Steel Spring | leaf spring suspension |
Main beam | height beam500mm,upper plate14mm,down plate16mm,middle plate8mm. |
Tyre and quantity | 12R22.5 tubeless tires, 12 pieces |
Landing gear | JOST, double speed operation |
Thickness | bottom:8mm, side:4mm |
Brake system | WABCO braking system with ABS |
Electrical system | 24V Electrical system With LED Light |
Tool box | 1 sets |
Spare tire carrier | 1 Set |
Packing | Optional for SKD loading |
Function | Transport Sand and Stone Transport |
Features of 3 axle rear dump semi trailer
Hydraulic lifting system: materials can be dumped easily. The hydraulic cylinder is of high quality and durable. The lifting system is easy to operate and the dumping process is fast and efficient.
Rugged Chassis: Designed to withstand high stress and heavy loads. The chassis is made of solid steel and is designed for maximum stability and safety. The suspension system is designed to absorb shock and vibration, making it easier to maneuver over rough terrain.
High-quality tires: provide excellent grip and stability even on slippery roads. Wheels and rims are designed to withstand heavy loads and rough terrain. The braking system is reliable and easy to operate, ensuring maximum safety during transportation.
Rugged Body Construction: The sides and bottom of the 3 axle dump semi trailer are made of high-quality steel to withstand heavy loads and rough terrain. The body is also treated with an anti-corrosion coating to prevent rust and damage.
Spacious and Comfortable Cab: Our 3 axle dump semi trailers are also designed for maximum operator comfort and convenience. The cab also has amenities such as air conditioning for operator comfort.
In conclusion, our 3 axle rear dump semi trailers are a reliable and efficient solution for the transportation of loose materials. It is designed to withstand heavy use and rough terrain, making it ideal for the mining and construction industries. It is a product made with quality materials and workmanship that is sure to meet customers' needs in China, Africa, the Middle East, and other parts of the world.
