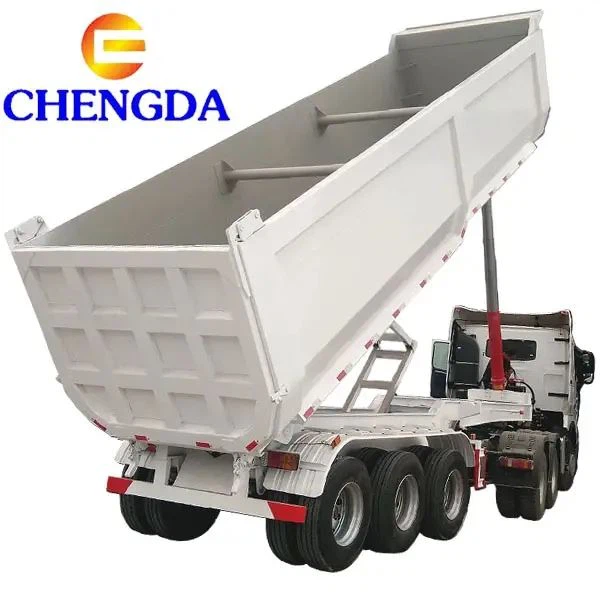

3 Axle Steel Dump Trailer
Product Details
3 axle steel dump trailers can be used to transport bulk cargo, coal, ore, and construction materials. There is no dead corner in the U-shaped box corner, and the unloading is cleaner. T700 high-strength board is used to reduce the tare weight and reduce the damage to the box body caused by the mine head. The lower center of gravity of the U-shaped structure prevents the cargo from overflowing. We use parts from world-renowned brands, such as JOST, WABCO brake valves, etc.
Specification of 3 axle steel dump trailer
| Brand | Chengda |
| Application | Coal/Mine/Stand/Stone Loading |
| Dump Style | Rear Dump |
| Loading Capacity | 30T-100T |
| Axle | 2/3/4*13/16T VEHICLE MASTER/FUWA/BPW |
| Length | 11000mm |
| Width | 2500mm |
| Height | 2800mm |
| Cylinder | HYVA (model is according to the length of cargo box) |
| Floor Plate Thickness | 5mm |
| Cargo Thickness | 4mm |
| Cargo Style | Rectanglular/Round |
| Front Axle Lifting | Available |
| Main Beam | Material Q345/T700 |
| Height: 500mm | |
| Upper Plate: 14mm | |
| Middle Plate: 8mm | |
| Lower Plate: 16mm | |
| Tire | 11.00R20/12R222.5*8/12/16 pieces Linglong/Triangle/Double-Coin/Bridgestone |
| Rim | 8.0/9.0*8/12/16 pieces, steel/aluminum |
| Suspension | Mechanical/Airbag |
| Leaf Spring | 90mm*13/16mm*10 pieces |
| Landing Gear | 28T two-speed, JOST |
| King Pin | #50(2")/#90(3.5"), JOST/Other Brand |
| Tool Box | Steel/aluminum |
Our Service
1. Professional production team: more than 100 experienced workers, providing customers with high assembly, and fast and high-quality delivery.
2. Customization: The professional design team provides suitable solutions and customization, and supports local self-adaptive trailers.
3.7*24 hours service: provide a professional and fast response.
4. Parts support: Abundant parts supply provides lasting support for global customers.
FAQ
1. I want to customize the trailer according to my own requirements, is that possible?
Of course, we design and manufacture all our own products and we do a lot of custom trailers. If you have other special requirements, please tell the sales manager directly. Our technicians will give you the design accordingly, and we will start production after you sign and confirm.
2. What is your fastest delivery time?
Our production date is 20 working days for standard model trailers and 30 working days for custom trailers. Standard model trailers can be delivered within 7 working days if you pay a 100% deposit after signing the contract.
3. The roads in our country are not good. Is your trailer suitable for this type of road?
Chengda Group is a professional manufacturer of semi-trailers, delivering a large number of trailers every day. The semi-trailer we export is made of Q345B/Q460C steel, which has good toughness and strength. Most importantly, the same type of semi-trailer exported to Africa is 2 tons heavier than the trailer used in China. Thicker steels are used for larger tonnage steel structures for bearings, suspensions, leaf springs, and axles. We will test 150% load capacity before delivery. The semi-trailer can be used in Africa for more than 15 years.
