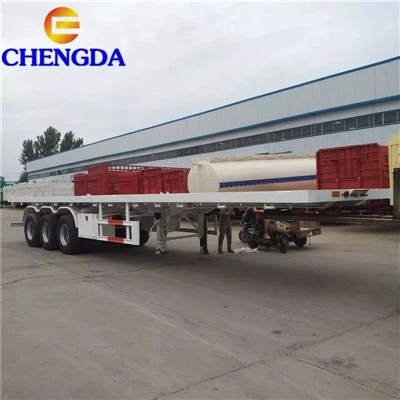

3 Axle 40 Foot Flatbed Trailer

Tel: +86-531-69885132
Mob/Whatsapp/Wechat:+86-18253112966
E-mail:cdtruck@sinotrucksale.com

Chat Now

Product Details

As one of the leading flatbed trailer manufacturers in China, we are proud to provide our customers with the highest quality products and exceptional service. Our 3 axle 40 foot flatbed trailers are designed to meet all your transportation needs, especially non-containerized cargo. It is your best choice for transporting oversized loads, machinery, and materials.

Features of 3 axle 40 foot flatbed trailer

1. Frame: Our trailer frames are constructed from high-strength steel to ensure maximum durability and extended service life. Its bed board and angle iron are welded into a one-piece frame, which has excellent strength and stability.

2. Axles and Suspension: Our trailers feature 3 high-quality axles with a payload capacity of up to 60,000 lbs. The suspension system is designed to provide a smooth ride, even on rough roads.

3. Braking system: Our flatbed trailers are equipped with dual air braking systems to ensure maximum safety. This braking system ensures your cargo is protected from sudden stops or changes in direction.

4. Lighting System: Our trailers are equipped with a complete LED lighting system to ensure optimal visibility at all times. The system features side marker lights, tail lights, brake lights and turn signals for maximum road safety.

5. Winch Straps and Ties: Our flatbed trailers come equipped with winch straps and ties designed to secure your cargo and hold it in place during transport.

3 Axle Flatbed Container Trailer details

Specification of 3 axle flatbed trailer

Name	flatbed semi trailer
Loading capacity	30-60T
Tare Weight	6.5-10T
Axle	2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua
Rim	8.00-20/8.5-20/8.8-20 China Brand
Tire	12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional)
Suspension	Mechanical suspension(German Type or America Type) or Air suspension
Spring leaf	90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specificationcan be Optional)
Wheel base(mm)	6880+1310+1310.
Kingpin	JOST brand 2.0 or 3.5 inch bolts type or Welding type
Steel Spring	8/8/8, 10/10/10, 12/12/12 pieces per axle
The material of Main beam	Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel.
Side beam	16mm-25mm channel steel (Material is Q235 carbon steel)
Brake chamber	6 double brake chamber
Landing gear	JOST/FUWA/Yahua brand 28T(two speed or single speed)

Company Advantages

1. Rich experience: With more than 20 years of experience in the manufacturing industry, we have the expertise and knowledge required to produce the highest quality products.

2. Quality Control: Our quality control department is composed of experienced professionals who take great care to ensure that every product meets our strict quality standards.

3. Competitive price: Our 3 axle 40 foot flatbed trailers have competitive prices in the market, which means that when you choose us as your supplier, you will get the best price/performance ratio.

4. Excellent after-sales service: We are committed to providing customers with excellent after-sales service. Our support team is ready to help you with any questions or concerns.

5. Customization: Our 3 axle flatbed trailers can be customized to meet your specific requirements. We can modify the length, width, and height of your trailer to meet your unique transportation needs.

Certificate

In Conclusion

Our 3 axle 40 foot flatbed trailers are a reliable, high-quality, and cost-effective solution for transporting oversized and non-containerized cargo. With our outstanding features and company advantages, we are confident that you will choose us as your preferred supplier. Please contact us today to learn more about our products and services.

Chengda customer visit
