3 Axle 45ft Container Flatbed Trailer

Chat Now

Product Details

3 axle 45ft container flatbed trailers are heavy-duty transport vehicles that typically handle wide loads, oversized equipment, machinery, and bulk cargo. They are made of heavy-duty steel and typically have multiple axles to safely move heavy cargo. Due to their flat nature and open sides, flatbed trailers are one of the most commonly used types for heavy-duty transport and oversized cargo transportation. A standard flatbed is essentially a box trailer without sides, doors, or roofs. JIYAKE's trailers are bare flatbeds and can be 20 feet, 40 feet, 45 feet in length. Flatbeds are suitable for safely storing cargo containers of various sizes, and they are often used as the preferred mode of transportation between shipping terminals.

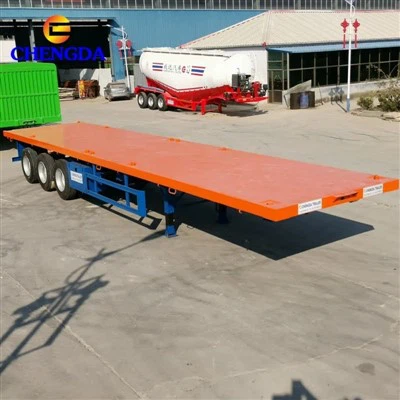

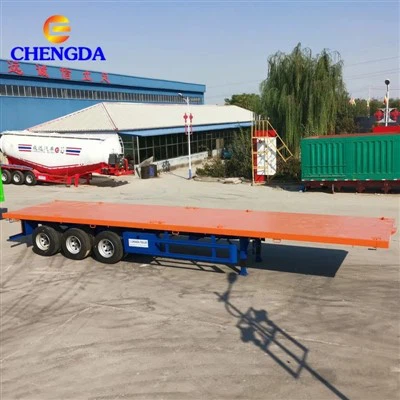

3 axle 45ft container flatbed trailer

Applications of container flatbed trailer

3 axle 45ft container flatbed trailers are primarily used to transport heavy, oversized, wide, and non-fragile cargo such as machinery, building supplies, or equipment. For example: transporting construction equipment, building and construction material transportation, scrap metal and recyclables mobilization, oil and gas rig transportation, agricultural equipment, and cargo transportation.

Flatbed Container Trailer application

Specifications of 3 axle container flatbed trailer

Item	Value
Overall Dimension(Lx W x H)	1250025001550(mm)
Loading Weight( KG)	40 - 80 tons
Axle Brand	ZY / FUWA / JOST optional
Axle Number	2 / 3 / 4 optional
Suspension system	Mechanical Leaf Spring Suspension
Leaf spring	90(W)mm16(Thick)mm10 Layer
The material of Main beam	Q345B carbon steel,The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm, middle plate is 10 mm.
Tire	12R22.5
Rim	9.0*22.5 steel disc wheel, 10 holes ISO
Brake system	Dual Line braking system / ABS.
Landing Gear	Standard 28ton
Brake air chamber	Six big chamber
Electrical system	Voltage: 24v Receptacle: 7 ways (7 wire harness)

Packaging and Shipping

1. By Container Shipping.
2. By Bulk Transportation.
3. By Rolled Transportation.
We will choose the best transportation plan to reduce transportation costs.

Shipping

Why choose us?

Chengda Group is a professional 3 axle 45ft container flatbed trailer manufacturer with 18 years of experience exporting trucks and semi-trailers. Our products are sold well in international markets such as the African, Middle Eastern, South Asian, and South American markets. Our company has a complete set of strict quality assurance systems, an after-sales service system, and an accurate verification system to provide customers with cost-effective 3-axle 45-foot container trailers.
