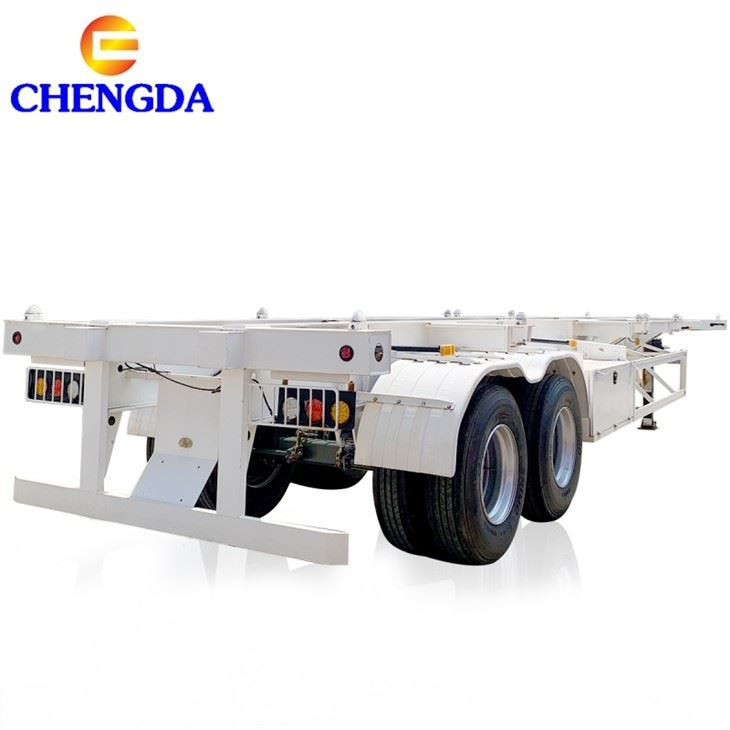

20ft Skeleton Semi-Trailer
Product Details
Features of 20ft skeleton semi-trailer
Standard Chassis: The container chassis is made of high-strength steel profiles and is systematically protected against corrosion.
Rear Extension: Optional rear extension can be pneumatically extended to the desired container position.
Air Suspension Option: Excellent driving characteristics thanks to BPW/SAF air suspension. The innovative ventilation system generates less heat, extending the life of the brake pads.
Lift Axle Optional: Lift Axle improves efficiency, driving safety, and off-road traction.

Specification of 20ft skeleton semi-trailer
Axle | 3 axles BPW/FUWA |
Height of Skeletal Trailer | 1550mm |
Skeletal Trailer Weight | 5600 kg |
Dimension | A: 7500*2500*1550mm |
Payload | 30 to 40 Ton |
Main Beam | “I” Section 500mm height Q345/T700 material |
Twist Lock | 8 sets of ISO Standard |
Suspension | Mechanical / Air / Bogie |
Air Tank | 28L |
Brake Chamber | 4/6 sets T30/30 |
Brake Valve | WABCO |
Rim | 8/12 pieces 9.0-22.5 Steel/Aluminum |
Why choose Chengda's skeleton semi-trailer?
1. Assembling with an assembly machine: reducing human error and greatly improving the safety of semi-trailers
2. Excellent welding technology: All parts are shot peened to improve paint adhesion and painted before assembly to make the main beam stronger and more durable.
3. Customization: All our products are customizable, if you have any specific requirements, we can meet your needs.

Our Service
1. Every sale: Our sales staff will answer your questions and give you the price via online internet within 24 hours.
2. Production: During the production process, we will inform you of the process through video or pictures. If you want to make a change, we can talk about it and make it perfect.
3. Before delivery: After the product is finished, we welcome you to come to our factory to check the quality of the product. We can also help you book shipping and send you a picture of the loading details when the container is loaded.
4. After sales: send you pictures or videos for trailer assembly. Any questions about trailer assembly, you can contact us, and we will solve your problem within 24 hours.

FAQ
Q: How will the skeleton trailer be packaged?
A: They can be packed in containers
Q: Can I have a 40ft used semi-trailer?
A: Of course, you can. We also have 40ft trailers for sale. If you have special needs for a skeleton semi-trailer with a gooseneck, we can also design it for you according to your requirements.
Q: How long is the delivery and arrival time?
A: Standard models can be shipped within 10 days after payment if we have them in stock.
If it belongs to the custom series, ordinary boxes can be shipped within 15 days.
For Asian countries, it can arrive within 1-2 weeks, for countries and regions such as Africa and the Middle East, it will achieve 25 working days.
