Product Details

40ft 20ft 45ft container skeleton semi trailer

Product Description

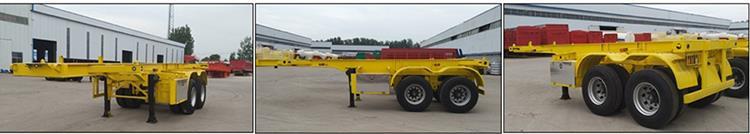

2 Axle Skeleton Semi Trailer

10.1

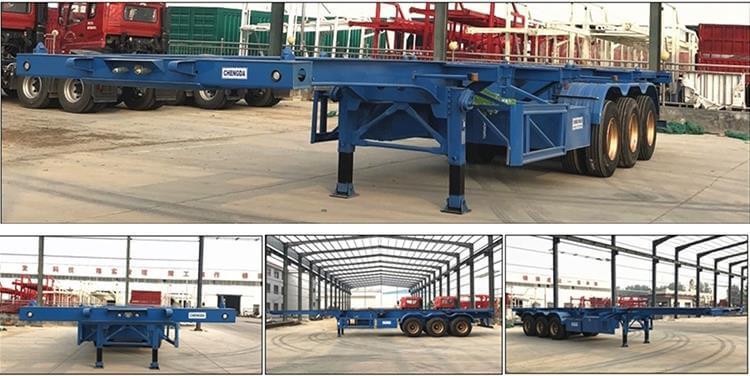

3 Axle Skeleton Semi Trailer

10.2

40ft 20ft 45ft container skeleton semi trailer

Dimension and Weight
Overall Dimension(mm)	12500x2500x1650mm
Wheelbase	7,500mm+1,310mm+1,310mm
Payload	40,000kg
Tare weight	6,500kg
G.V.W.R.	46,500kg
Function	transport 1x20ft, 2x20ft, 1x40ft container
Running System
Main beam	height of the beam is 500mm, upper plate is 14mm, down plat is 16mm, middle plate is 8mm.
Side beam	16#
Axle	3x13Ton ZY brand
Axle Number	Three
Tire	12R22.5, 12 pcs. Taitong brand
Rim	9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System	Chinese standard 24V lighting system
Brake system	Dual line pneumatic brake, no ABS
Brake air chamber	6 units T30/30 Double brake chambers
Emergency relay valve	Standard
Diamond plate	4mm
Traction/King Pin	2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear	Yahua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location
Accessories
Tool box	1pcs, One crank and one shaft head wrench
Mud guard	Steel mud guard and front mudguard
Spare wheel carriers	2 pcs
Bumper	Rear bumper with adjustable height
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core electric cable protected by PVC conduit on main frame
Paint	Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed
Packing	Nude, Polish with wax before shipping

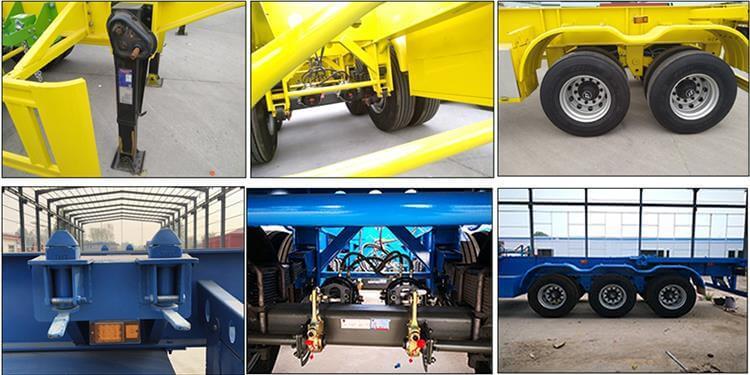

Show Details

10.3

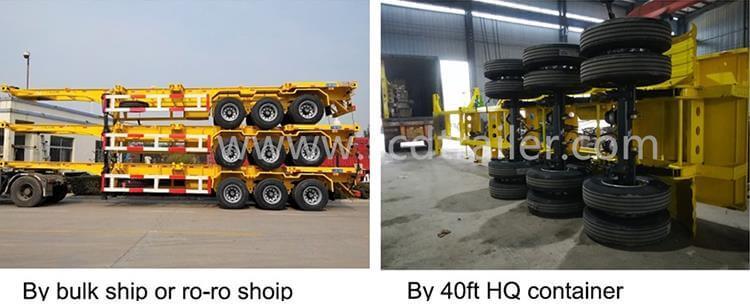

Packaging & Shipping

10.4

FAQ

1.Does your company is a factory or trade company?

We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.

2.Whats the qualify assurance we provided and how do we control quality?

1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.

2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.

3. What’s your MOQ?

One unit trailer or truck.

4. How do you transport the semi trailers and trucks?

We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.

bulk or container.

5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
