40ft Tractor Trailer Chassis 20ft Trailer Skeleton

3 Axle 60 Ton 100 Ton 18 Meter Lowboy Axle Low Bed Truck Lowbed Semi Trailer. We're one of China's leading Low Bed Trailer manufacturers, equipped with a productive factory. All products for sale enjoy competitive price and one year warranty.

Chat Now

Product Details

20ft trailer skeleton

2 axle 60tons skeleton trailer

2 axles port trailer -

Specification
Overall Dimension	13000x3000x1650mm	Working Deck Dimension	9000x3000x1350mm
Platform thickness	4mm	Main Beam	“H”main beam design,Q345B carbon steel, the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase	7,650mm+1,310mm+1,310mm	Payload	60,000kg
Tare weight	9,000kg	G.V.W.R.	69,000kg
Axle	3X13Ton, FUWA brand one hundred fifty thousand Kilometers no need maintenance	Tire	1100R20, 12 pcs
Rim	8.0*22.5 10 holes ISO, 12 pcs	Suspension system	Mechanical Suspension
Brake system	Dual line pneumatic brake, SAE hose and connector,optional ABS	Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve	Traction/King Pin	2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear	28ton external two speed telescopic manual operation	Ramp	Heavy duty trailer ramp

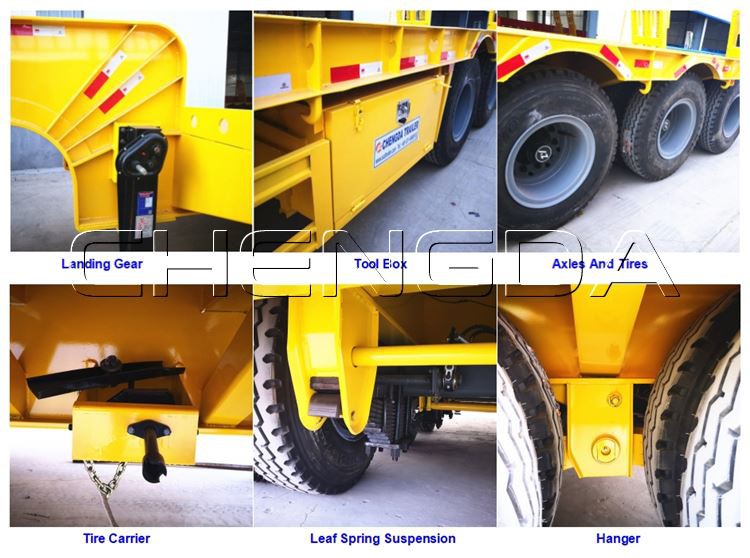

Detail Images

1.TYRE ADVANTAGE:THE CHOICE OF OLD AND NEW TIRES， WORLD FAMOUS BRAND.

2.WARRANTY ADVANTAGE:CHENGDA GRANTS OUR CLIENTS A TWELVE-MONTH-PERIOD(1 YEAR) WARRANTY FOR NEW PRODUCT PURCHASED FROM US.

3.SPARE PARTS ADVANTAGE:WITH OUR GLOBAL DISTRIBUTOR NETWORK,YOU ARE GUARANTEED WITH FAST DELIVERIES AND SERVICES.

4.TRAINING ADVANTAGE:WE OFFERS PERFACT SERVICES TO DIFFERENT USERS.

lowbed (3)

Packing & Delivery

BY BULK CARGO SHIP/RORO SHIP/40FT FLAT RACK SHIP

PS:

WE WILL CHOOSE THE BEST SHIPPING METHOD FOR YOU ACCORDING TO YOUR NEEDS!!!

Customer Feedback

CUSTOMERS FEEDBACK ABOUT OUR PRODUCTS FROM ALL OVER THE WORLD

Company Profile

1.PRODUCT:TESTING TO ENSURE THAT ALL OUR PRODUCTS ARE THE MOST COMPETITIVE ORIGINAL PRODUCTS

2.LOGISTICS:EXCELLENT LOGISTICS SUPPORT SERVICE TEAM TO ENSURE THAT PROMPT DELIVERY OF VEHICLES AROUND THE WORLD

3.AFTER-SALES:COMPREHENSIVE AFTER-SALES SERVICE,INCLUDING SPARE PARTS SUPPLY AND TECHNICAL CONSULTATION

4.WARRANTY ADVANTAGE:CHENGDA GRANTS OUR CLIENTS A TWELVE-MONTH-PERIOD(1 YEAR) WARRANTY FOR NEW PRODUCT PURCHASED FROM US.

Certificate

CERTIFICATION:SHANDONG CHENGDA HAS PASSED BV,CCC,ISO,WMI,AND OTHER INTERNATIONAL QUALITY MANAGEMENT AYSTEM CERTIFICATIONS

Any Questions, Just Contact Us, We Will Give Quick Reply.

Contacts: Anne Jiang

Email: anne(at)scdtrailer.com
Mobile: +86-18253113561
WeChat&WhatsApp: +86-18253113561
