3 Axl 30 Ton Oil Tank Tanker Semi Trailer

3 Axl 30 Ton Oil Tank Tanker Semi Trailer

3 axl 30 ton oil tank tanker semi trailer Product Description 3 axl 30 ton oil tank tanker semi trailer, According to clients' requirements, we can customize different volume and compartment. The popular oil tanker trailer models include: 3 Axles 60,000L fuel tanker trailer / 3 Axles 45,000L...

Chat Now

Product Details

This is a oil tank tanker semi Trailer model specially developed for the transportation market of petrol and diesel and other dangerous chemicals. The oil tank trailer adopts advanced butt welding technology, the tank body is pre-treated with shot blasting process after welding, and the tank body is tested for leakage by high pressure gas after forming, so that the tank body has the characteristics of high strength, good gas tightness and safe and smooth vehicle transportation.

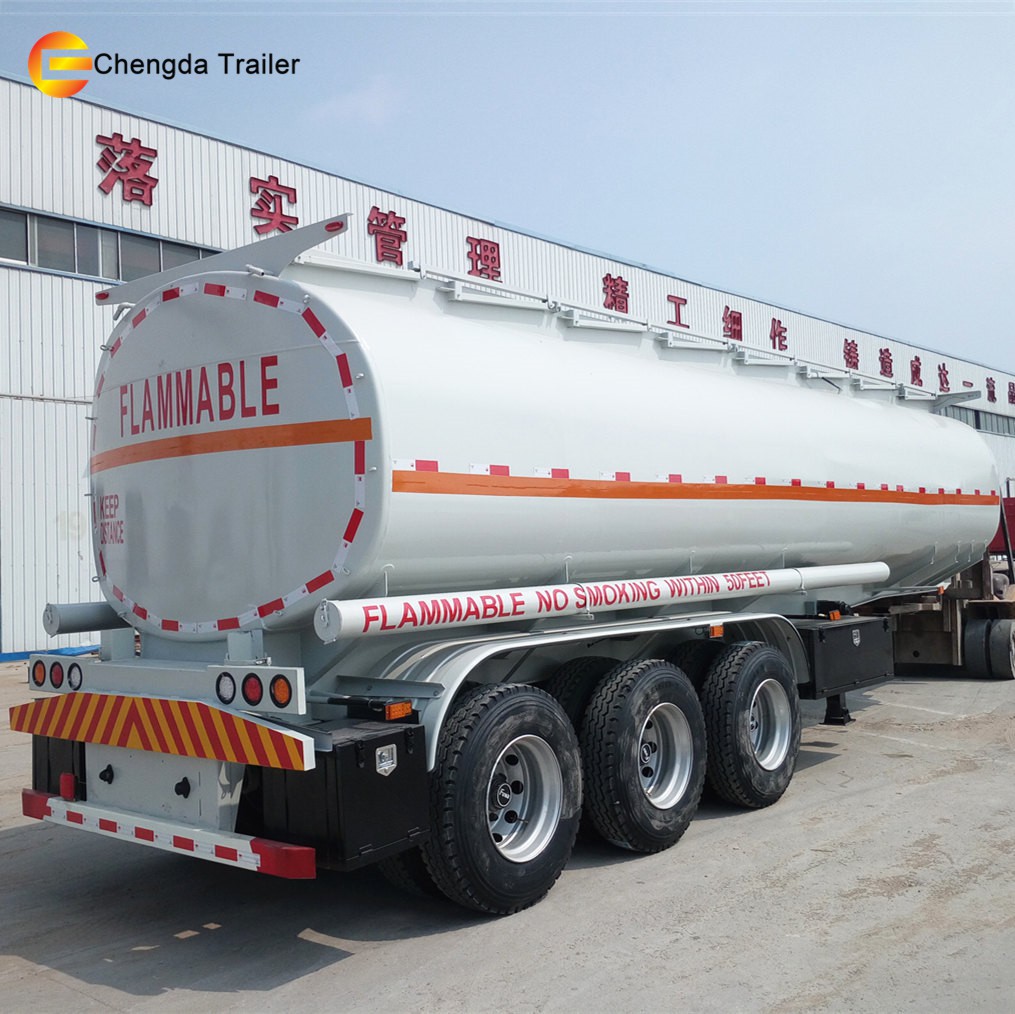

Oil Tank Tanker Semi Trailer

Reasons for choosing chengda to buy tank semi-trailers:

1. There is a new wave-proof board structure inside the tank body of our oil tanker, which can minimize the impact of oil products on the tank body during driving.

2. The tank body of the oil tank trailer is welded by an intelligent straight/circular seam welding robot, which is firmly welded and has strong airtightness.

3. The front and rear heads of the tank body of the oil tank trailer are made by one-time spinning, and manual tapping of the edge is not allowed to ensure the welding quality of the head.

4. The tank body should be treated by the overall shot peening process to prevent rust and corrosion.

Oil Tank Tanker Semi Trailer

 More Details:

Oil Tank Tanker Semi Trailer

Overall Dimension

 11900x2500x3800(Lx W x H)(mm)


Tank body: Q235/5mm  carbon steel

End plate: Q235/6mm carbon steel



Axle Brand

FUWA 13Ton Axle, top brand



Manhole cover

500mm manhole cover. 3 sets with3 breath valve.


Top ladder with handrail, side ladder

Discharge valve

4''disc valve

Discharge pipe

4''seamless steel tube

Suspension system

Leaf spring suspension

Steel Spring

10/10/10 leaf spring suspension

90mm width, 13mm thickness

The material of Main beam

The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.

Landing Gear

Standard brand 28ton external, 2 speed, zhenhua brand

Brake system

Dual Line braking system

Brake air chamber

Six big double air chambers

Side Guard

According to customer’s requirement


According customer requirement


Polish with wax before shipping

Detailed Pictures:


Packaging & Shipping

1. By Container : Price is usually the lowest . Capacity below 40 CBM

2. By Bulk Ship / Flat Rack

3. By RO-Ro ship : Pirce is high but protect the trailer very well


If you are interested in further details, welcome to contact us ,thanks !
