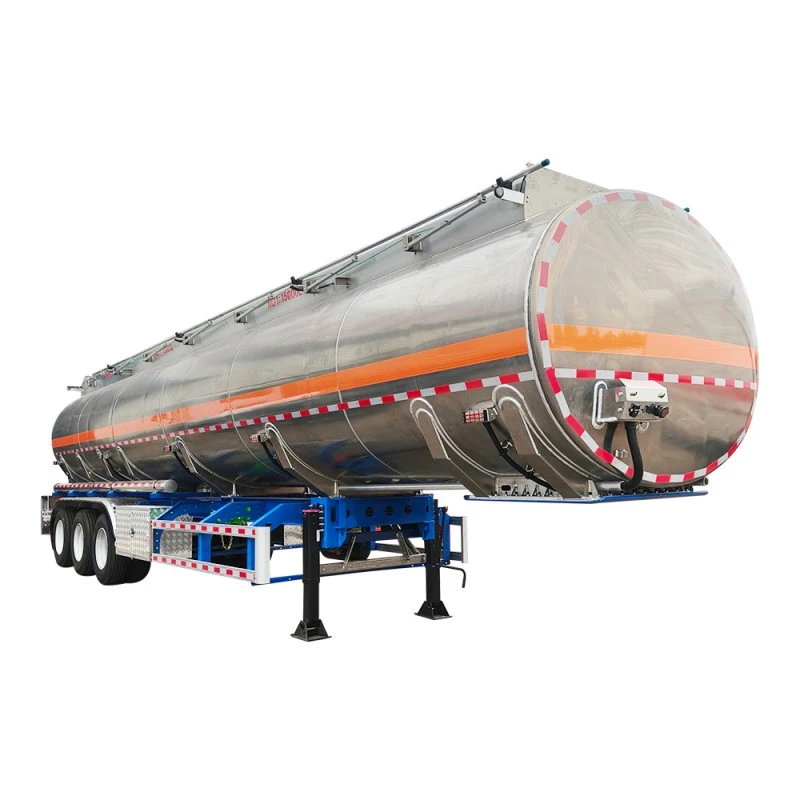

3 Axle Aluminum Fuel Tanker Trailer

Chat Now

Product Details

Chengda 3 axle aluminum fuel tanker trailers utilize advanced design concepts. To manufacture the most durable tankers, especially for the African market, road conditions are taken into consideration. This resistance to deformation, shock, and bumps enhances your transportation safety. The capacity of the tanker semi-trailers is customizable, ranging from 40,000 liters, 45,000 liters, 54,000 liters, and up to 90,000 liters. Different compartments, such as two, three, four, or even more, can accommodate different liquids.

Advantages of aluminum fuel tanker trailer

1. Strict quality control during production: We conduct over 20 tests before delivering tank trailers to customers.

2. Customized service: We are not only a factory but also a partner. After purchasing the trailer, we continuously monitor customer usage and update the design based on customer feedback.

3. We use only high-quality materials and parts to ensure a high level of quality.

4. Attentive after-sales service and rapid response.

details

Applications of 3 axle aluminum fuel tanker trailer

Tanker semi-trailers are widely used to transport gasoline, diesel, jet fuel, and other petroleum products from refineries to oil depots, gas stations, and airports. Their corrosion-resistant linings and explosion-proof design ensure safe handling of flammable liquids.

applications

Specifications of 3 axle fuel tanker trailer

Overall Dimension	11,10025003500 (LWH) (mm)
Tank Material	Aluminum ; Thickness 5 mm.
End-shell Material	Aluminum ; Thickness 6 mm.
Total Capacity	45000.00L
Compartment	5
Kingpin	JOST 3.5"(90# )
Manhole Cover	4" ; 5 units
ABS	Without.
Emergency Valve	4" ; 2 units ;
Suspension	Mechanical leaf suspension
Tire	11.00R22.5;12 units.
Rim	8.0-22.5,12 units
Axle	3X FUWA 13T;
Landing Gear	JOST C200T
Bottom Loading	5 units.
Handrail	YES
Discharging Pipe	DN80(3"), 6 meter
Discharging Valve	3" valve.
Hose Keeping Box	2 units.
Electric System	24 volt electrical system;LED;7 core socket.
Braking System	WABCO compressed air-powered brakes
Relay Valve	Yes

Packaging and Shipping

We primarily transport via roll-on/roll-off (Ro-Ro) ships, bulk carriers, or container and flatbed containers.

shipping

Why Choose Us?

Headquartered in Jinan, Shandong Province, our company is an integrated manufacturer and trader encompassing production, R&D, and sales. We have the capacity to produce a variety of models and can provide customized services based on customer needs. Our main products include 3 axle aluminum fuel tanker trailers, container trailers, cargo trailers, flatbed trailers, dump semi-trailers, and trailer accessories.

customer visit
