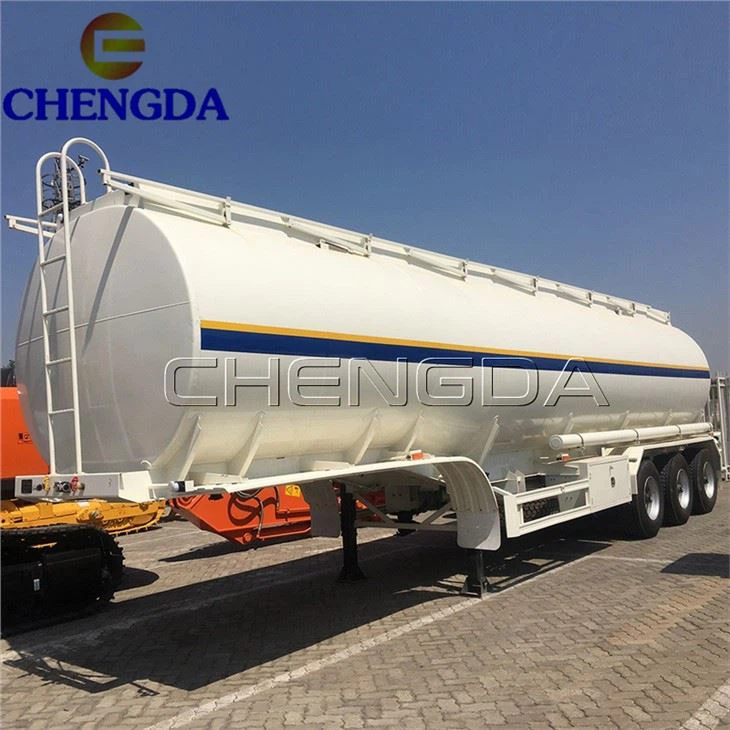

Fuel Tanker Semi Trailer Suppliers

Fuel Tanker Semi Trailer Suppliers


1. Our fuel tanker trailer adopts the gooseneck design with low center of gravity, 7% angle is more secure

2. The fuel tanker trailer adopts a semi-elliptical cylinder design, and the volume is increased by 12%

3. The fuel tanker trailer uses automatic arc welding technology, with a service life of up to 10 years

4. The trailer is ADR compliant, rules that apply to most oil companies

Chat Now

Product Details

Types of fuel tanker semi trailer are popular in East and Central African countries. The tank body material of the fuel tanker semi trailer is made of Q235A steel plate. The tank body is built with multiple reinforced wave-proof bulkheads with through-holes at the lower end of the bulkheads to reduce the impact of the oil inside the tank and improve the strength of the tank body when the car is moving, and the tanker body can be moved by twist-lock connection with the chassis.

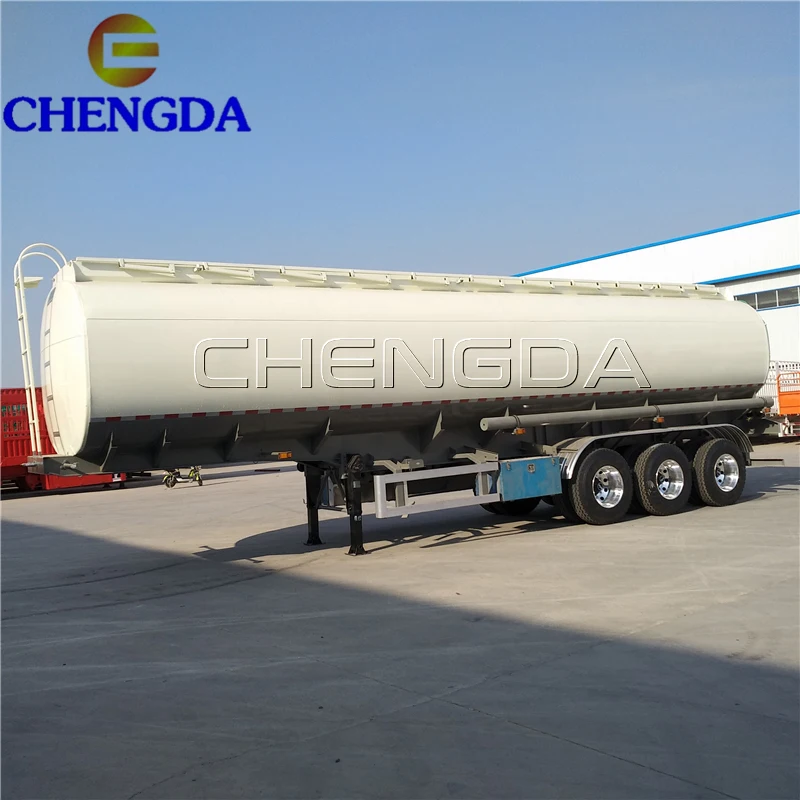

Fuel Tanker Semi Trailer


Chengda transportation equipment fuel tanker semi trailer, the company is a national key special-purpose vehicle manufacturing enterprise with independent research and development capabilities, advanced manufacturing technology, high-end configuration, high cost performance, sincerely invite all customers to visit the factory for on-site inspection and purchase!

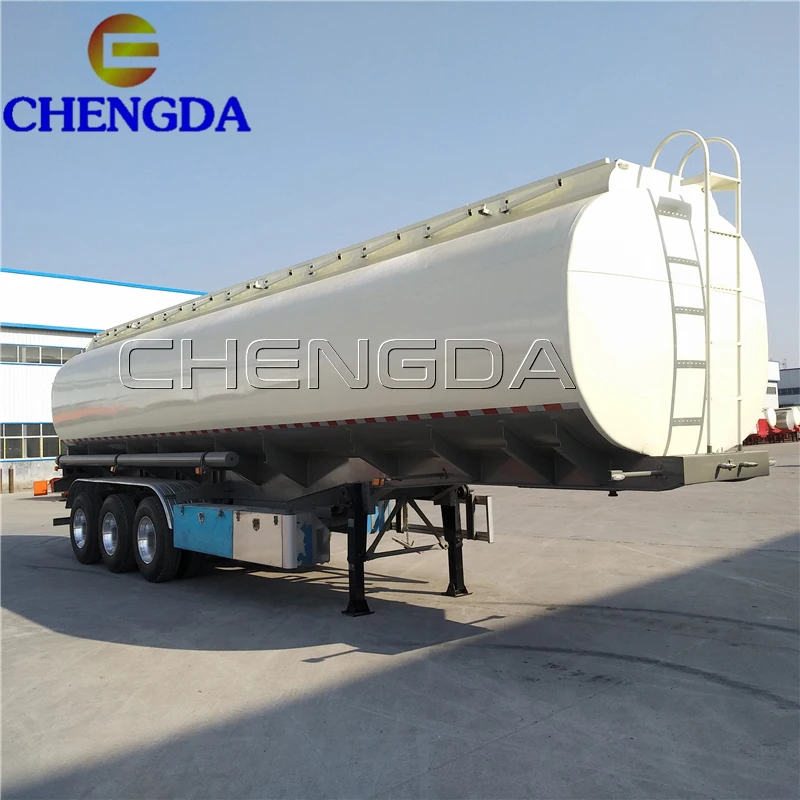

Fuel Tanker Semi Trailer

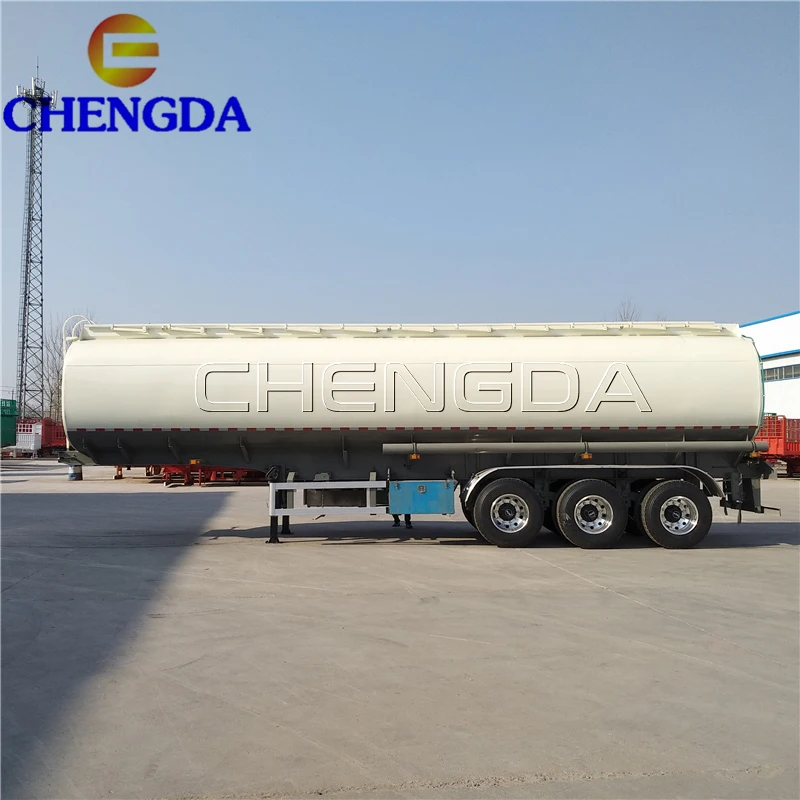

Fuel Tanker Semi Trailer

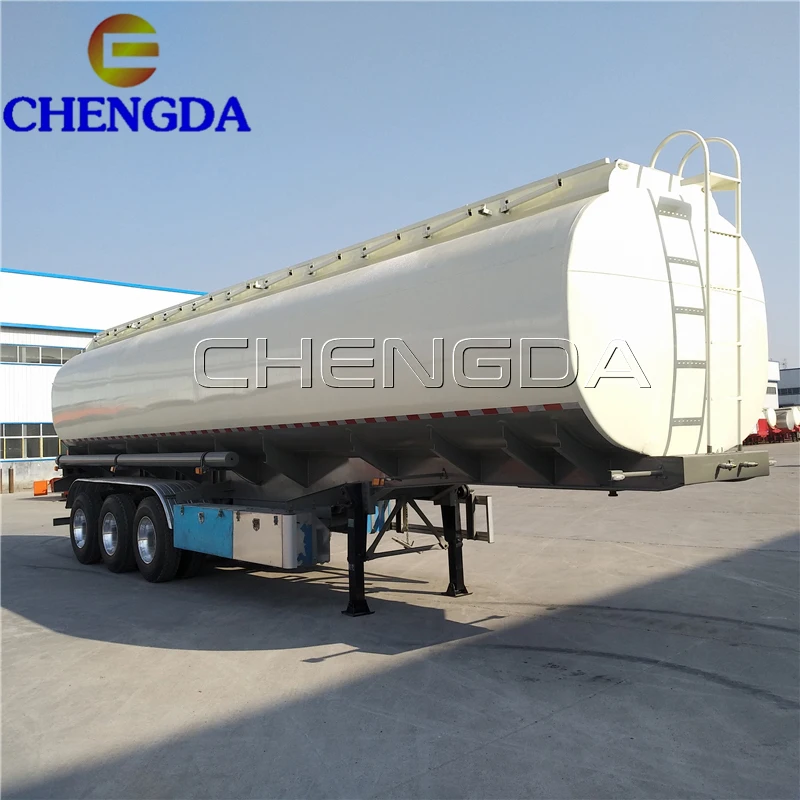

Fuel Tanker Semi Trailer

Maintenance methods for fuel tanker semi trailer to prevent oil loss:

1> When filling fuel tanker semi trailer for sale, it is recommended to strictly control the safety capacity and loading height of the oil tanker for sale to ensure no oil leakage or splashing.

2> Fill the oil barrel, pay attention to ensure that the oil tank does not leak oil.

3> When loading and unloading oil, the remaining oil at the bottom of the tank should be sucked up.

4> The used oil drum and the bottom of each drum should be cleaned and drained.

5> In the process of cleaning the fuel tanker semi trailer, the residual oil at the bottom of the water tank should be removed.

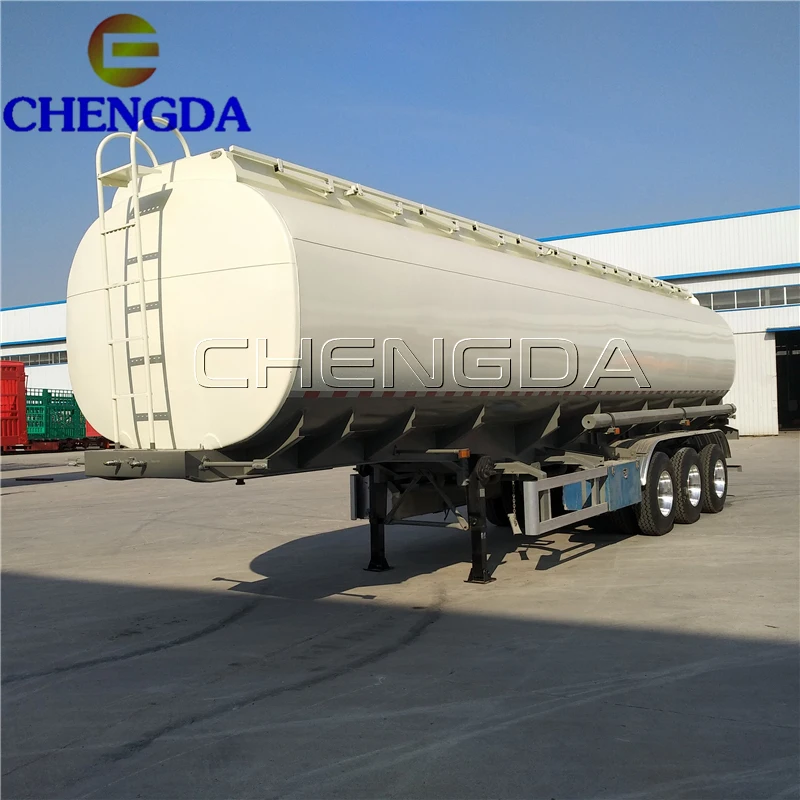

Fuel Tanker Semi Trailer


Overall Dimension(mm)

11500x2500x3900mm

Wheelbas

7,500mm+1,310mm+1,310mm

Payload

40,000kg

Volume

42000L

Thickness(mm)

Material Q235 carbon steel

Tank body and separate compartment plate: 5mm

Dish end plate: 6mm

Compartmen

3 compartments ( 3*14000L )

Tire

12R22.5, 12 pcs. Taitong brand

Rim

9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs

Brake system

Dual line pneumatic brake, SAE hose and connector,no ABS

Emergency relay valve

Wabco relay valve
