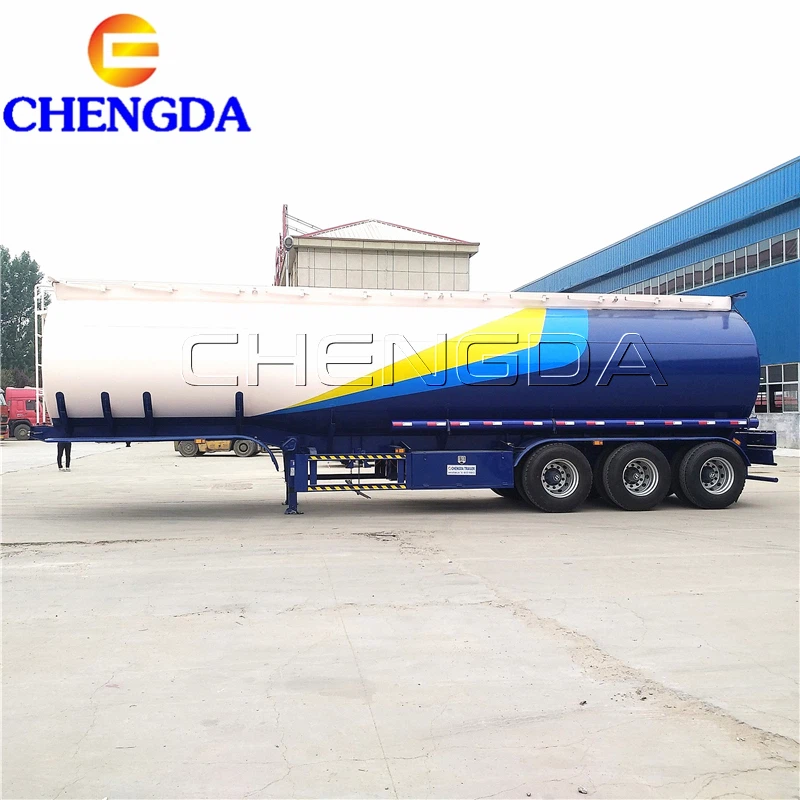

Heavy Fuel Tanker Semi Trailer
1. Our fuel tanker trailer adopts the gooseneck design with low center of gravity, 7% angle is more secure
2. The fuel tanker trailer adopts a semi-elliptical cylinder design, and the volume is increased by 12%
3. The fuel tanker trailer uses automatic arc welding technology, with a service life of up to 10 years
4. The trailer is ADR compliant, rules that apply to most oil companies
Product Details
Chengda heavy fuel tanker semi trailer has a variety of tank materials to choose. According to the volume and capacity of oil to be transported and the environment of use, carbon steel, aluminum alloy and stainless steel can be chosen. Among them, aluminum alloy and stainless steel diesel tankers are lighter in weight.
The more common and economical heavy fuel tanker semi trailer, the tanker body is made of high-quality steel Q235B. Usually used for oil transportation, such as fuel, diesel and other common liquid industrial oils, can withstand a certain degree of impact from the inside or outside.
More details:
SPECIFICATION | |
Payload | 28T - 70tons |
Volume | 28000liter - 70000liter |
Compartments | 1-9 |
Tanker body | 5mm |
Manhole | 2 - 9 pcs 16", 20" with vent valve |
Discharge vale | 4" API Adaptor Valve or 3" Spherical Valve |
Bottom valve | 3", 4" Contral by Pneumatic Block |
Handrail | Manual, Pneumatic |
Bottom Loading (Optional) | Overfilling, Recovery system |
Chassis | |
Main Beam | Q345B |
Axles | 2 - 4 pcs 13 - 20tons BPW or Fuwa Axles |
Suspenssion | Mechanical, Air, Bogie |
Landing Leg | JOST E100 |
Chengda offers a variety of specifications and materials for tank trucks to choose from. Want more information? Contact us now! !
- <
