3 Axles 60tons Stock Gooseneck Lowboy Low Loader Lowbed Truck Trailer
Type: Semi-Trailer
Max Payload: 60T/80T/100T
Place of Origin: Shandong, China
Brand Name: Chengda
Product name: Low Bed Semi Trailer
Axle: 13/16 Ton Fuwa/BPW
Product Details
A lowboy semi trailer is also called lowbed trailer, and low loader trailer. Generally used for transporting construction machinery and large equipment. We support custom designs, which can help you get the most suitable vehicle.
Product advantages
1. Strong loading capacity of 30-100 tons.
2. H beams are used for side beams instead of channels.
3. High-strength full-thickness steel ensures the toughness and strength of the beam frame.
4. The sturdy rib design ensures the safety and carrying capacity of the trailer.
5. The uniquely designed low-load platform provides a lower transportation center of gravity and more stable transportation.
6. Heavy duty ladder, and extra support to prevent the ladder from being broken when loading equipment.
7. Anti-skid strips at the tail and rear of the platform ensure safe loading.
8. Optional hydraulic ladder with a capacity of more than 60 tons to avoid occupational injury caused by the manual operation to release the ladder.
|
Specification |
|
|
Name |
3 axles low bed semi-trailer |
|
Model |
SCD9402TDP |
|
Overall dimension |
13000 * 3000 * 1650mm |
|
Loading capacity |
60T |
|
Axle brand and number |
13TFuwa Brand, 3 units |
|
Wheelbase(mm) |
6880+1310+1310 |
|
Kingpin |
50# or 90# |
|
Steel Spring |
10/10/10 leaf spring suspension |
|
The material of the Main beam |
The height of the beam is 500 mm, the upper plate is16mm, the down plate is 18mm, and the middle plate is 10mm. |
|
Tyre and quantity |
1100R20 radial tires, 12 pieces |
|
Landing gear |
28T, double-speed operation |
|
Platform plate |
3mm Checkered steel plate |
|
Brake system |
Dual Line braking system, no ABS. |
|
Brake air chamber |
Four double and two single chamber |
|
Electrical system |
24V, 7-pin socket, One set 6-core standard Cable |
|
Light |
Tail lamp with turn signal, brake light & reflector, side lamp, etc |
|
Toolbox |
1 set |
|
Spare tire carrier |
2 sets |
|
Painting |
Optional |
|
Packing |
Polish with wax before shipping |

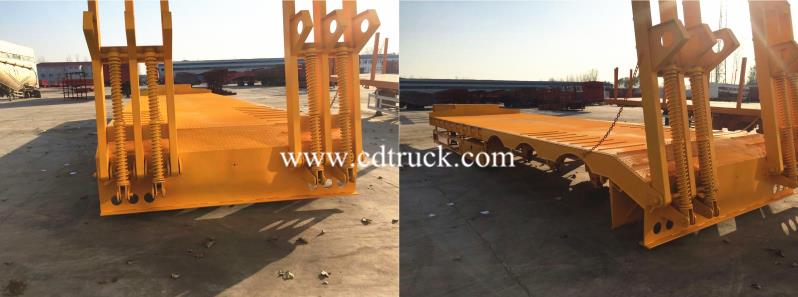

Details pictures for 3 Axles 60tons Stock Gooseneck Lowboy Low Loader Lowbed Truck Trailer
Packaging & Shipping
We transport lowboy semi-trailers in bulk, containers, or ro-ro. Our factory has long-term cooperation with shipping agencies and can provide you with the lowest freight.
Certifications
Our factory has BV, WMI, CCC, and ISO9001 certifications.
Our service
Respond to your inquiry within 12 working hours;
Experienced staff to answer all your questions;
Customer designs are available for certain products (OEM);
All kinds of engine mechanical spare parts at a reasonable price;
Different kinds of semi-trailers can be provided with competitive prices.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers in good quality to ensure trucks and trailers are in good working condition.
