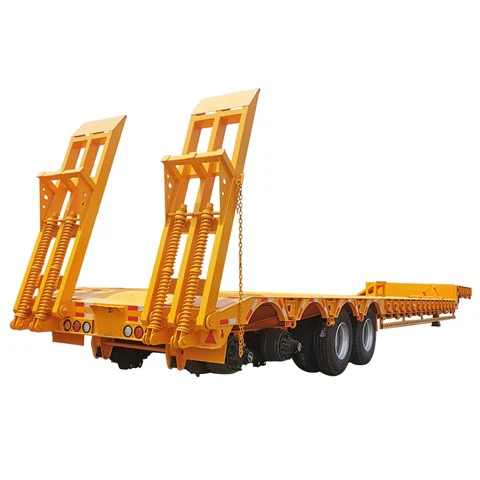

4 Axle Heavy Duty Lowbed Semi Trailer

Chat Now

Product Details

The 4 axle heavy duty lowbed semi trailer consists of a frame, gooseneck, cargo platform, mechanical ladder, tires, etc. The front end of the equipment transport semi-trailer frame is a gooseneck, which is mainly used to connect the traction saddle on the tractor and play the role of a tractor. There is a cargo platform behind the gooseneck, which is characterized by a low load-bearing surface, wide platform, lightweight, large cargo load, and high transportation efficiency.

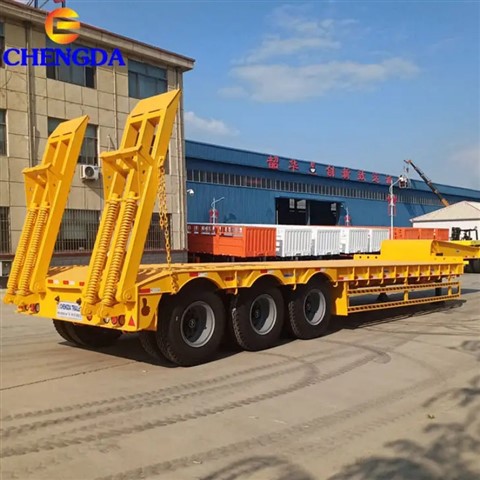

lowbed trailer

Why choose our 4 axle heavy duty lowbed semi trailer?

1. Cross support: optional thickened steel plate to increase the load-bearing capacity, the encrypted design provides good transportation stability, and the size and shape can be customized to suit specific cargo.

2. Landing gear: The landing gear can be selected from aluminum or steel; and designed to work in high and low temperatures ranging from -30ºC to 120ºC.

4 Axle Lowboy Semi Trailer Details

3. Loading ramp: suitable ramp, automatic operation, equipped with an electric or hydraulic system, the ramp design has an expandable function and can be adjusted to suit different load requirements.
4. Lashing Points: High-strength steel with corrosion-resistant treatment meets ISO standards, increases the number of fixing points for greater safety, and increases loading flexibility to accommodate cargoes of different sizes.

4 Axle Lowboy Trailer details

Parameters of 4 axle heavy duty lowbed semi trailer

Type	Lowbed Semi Trailer
Dimension(L * W * H)(mm)	13000 * 3000 * 1650
Working Deck(L * W *H)(mm)	9000 * 3000 * 1350
Main Beam	Q345 carbon steel, the height of the main beam is 500mm, upper plate is 16mm, down plate is 18mm, middle plate is 10mm
Platform Plate	4mm diamond plate
Side Beam	20# Q235 channel steel
Axle	3 * 13 Ton Axle, FUWA/ZY/BWP brand
King Pin	50#/90#
Suspension	Common Mechanical Suspension
Steel Spring	90(W)mm * 13(Thick)mm * 10 Layer
Tire Type and Quantity	1100R20 12units
Landing Gear	Standard 28 ton single action supporting legs
Brake	Dual line pneumatic brake, SAE hose and connector, optional ABS
Air Chamber	Six double air chamber

Packing and Shipping

1. By 40ft/45ft/40ft container
2. Bulk/RoRo
3. As per your requirements.
Professional packages save you freight. To prevent seawater corrosion, we carefully wrap the film or cover it with tarpaulin.
High-quality paint and professional transportation ensure the good condition of the goods.

Shipping

About Us

Our company is an integrated industrial and trade enterprise, a semi-trailer manufacturer integrating product design, production, and sales. The main products are 4 axle heavy duty lowbed semi trailers, flatbed semi-trailers, dump semi-trailers, fence semi-trailers, and other special function trailers. Our products are sold well in Southeast Asia, Central Asia, the Middle East, Africa, and other Belt and Road countries and regions. We are committed to providing customers with the most professional transportation solutions and providing a wide range of customized services to meet your special needs.
