3 Axle 60 Ton 100 Ton 18 Meter Lowboy Axle Low Bed Truck Lowbed Semi Trailer For Sale Contact person: Nancy Sun Whatsapp: +86 150 5316 7203 Wechat:15053167203 Email:nancy@sinotrucksale.com

Chat Now

Product Details

Product Description

Specification

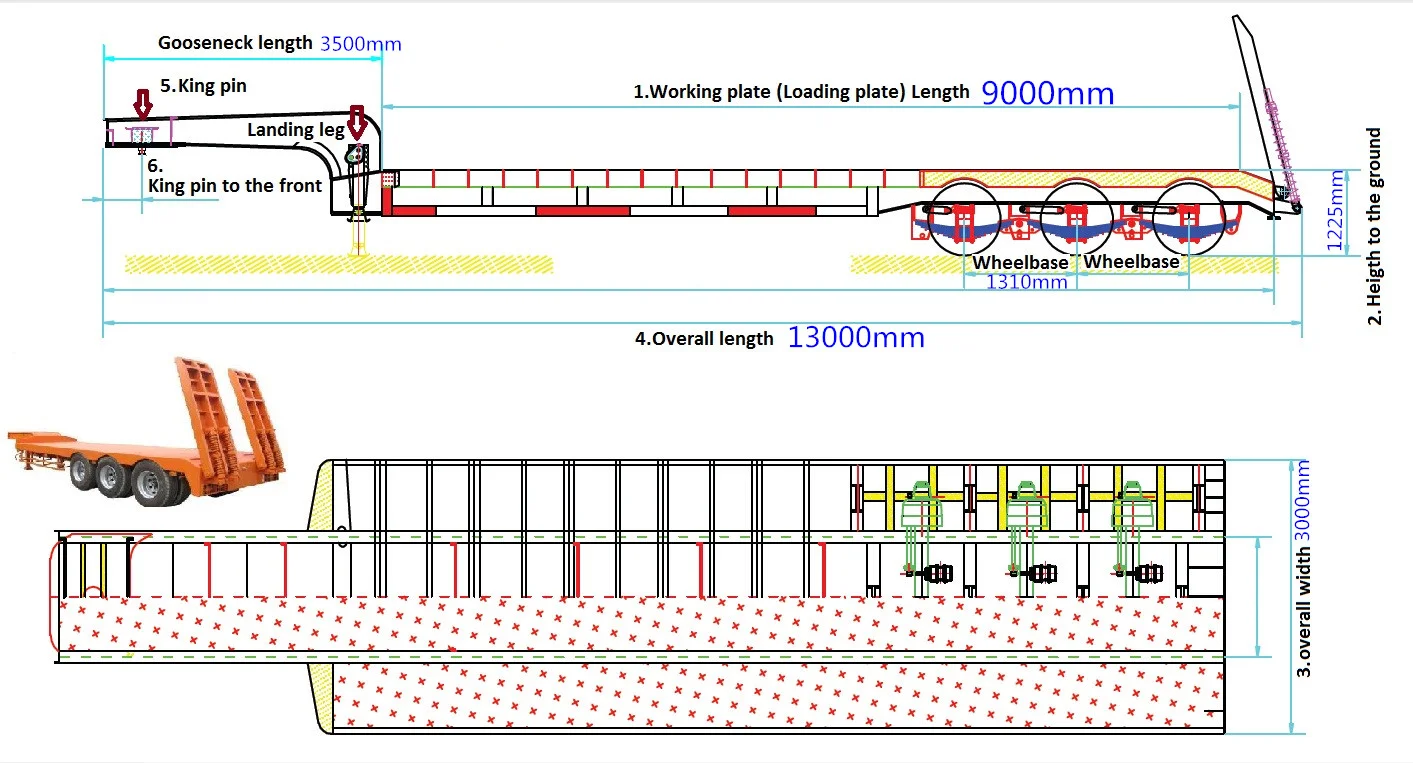

Overall Dimension(mm)	13000x3000x1650mm
Working Deck Dimension(mm)	9000x3000x1350mm
Platform thickness(mm)	4mm
Main Beam	“H”main beam design,Q345B carbon steel, the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase	7,650mm+1,310mm+1,310mm
Payload	60,000kg
Axle	3X13Ton, ZY brand optional FUWA brand one hundred fifty thousand Kilometers no need maintenance
Tire	1100R20, 12 pcs Taitong brand
Rim	8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Common Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Brake system:	Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve
Traction/King Pin	2” and 3.5” removable Kingpin
Landing Gear	28ton
Tool box	1pcs, One crank and one shaft head wrench
Ramp	Heavy duty trailer ramp
Spare wheel carriers	2 pcs
bumper	Rear bumper
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core electric cable protected by PVC conduit on main frame

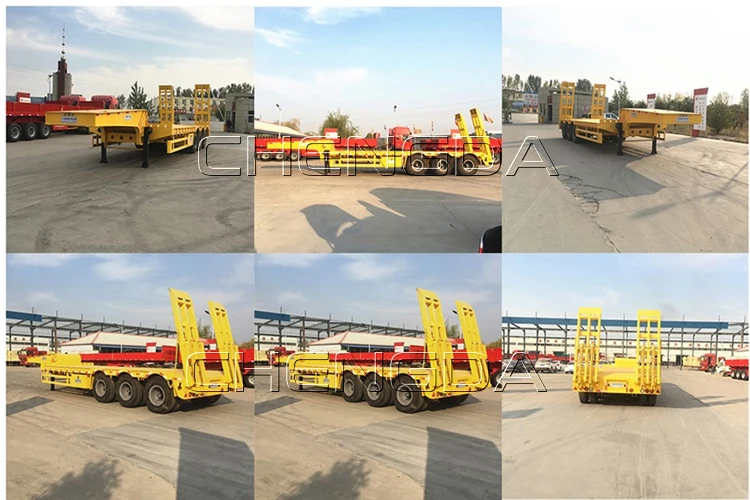

Details Images

Chenda uses advanced manufacture technology,make automatic submerged-arc welding for vertical beam,uses shot blasting treatment for integral frame,removes welding stress effectively,uses advanced fixture and technology during the whole production process,and ensure formation and assembly accuracy of work pieces.

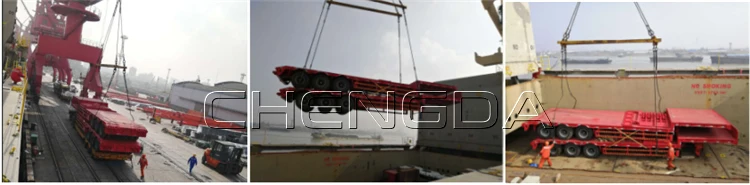

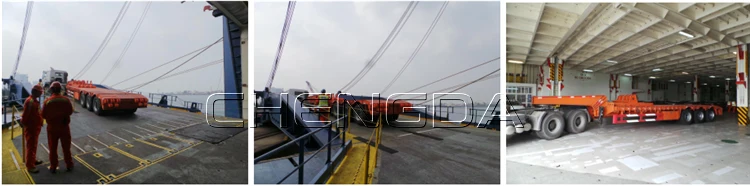

Packing & Delivery

Our Advantages

* Reply your inquiry in 12 working hours;
* Experienced staffs answer all your questions;
* Customer’s design is available for certain products(OEM);
* Spare parts for all types of engine machinery with reasonable price;
* Different kinds of semi trailer can be provided with competitive price.

We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.

Company Profile

Recommend Products

FAQ

1.Q: What kind of payment do you accept?
A: We accept T/T and L/C; Others payment is negotiable.
2.Q: What's your minimum order quantity?
A: One unit
3.Q: What's your delivery time?
A: 30 days after received the deposit.
4.Q: What's warranty time?
A: 12 months or 30,000 km from the date of shipment whichever comes first
5.Q: What's your after-sale service?
A: We provide technical support for our trucks and whole life parts supply
