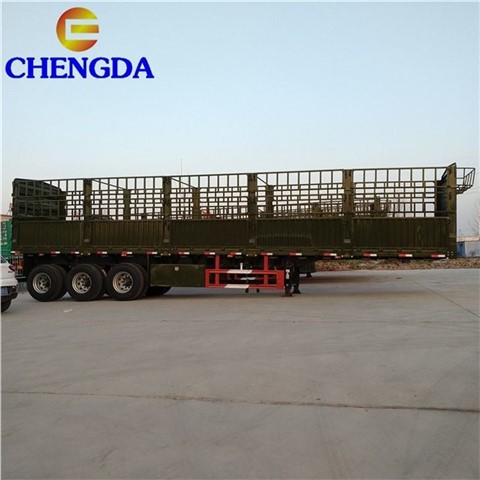

Fence Trailer
1. Fence trailer bracket adopts a high-strength material with a closed design structure at the upper end, which can meet the load-bearing capacity of the trailer.
2. Fence trailer adopts international well-known brands, with long life and durability.
3. The main beam of the fence trailer is welded by automatic submerged arc welding, which is more sturdy and durable.
4. Fence trailer has high-quality side walls to ensure the stability and safety of the load
Product Details
The body of the fence trailer is made of selected steel, advanced technology and strict production technology. The accessories are selected from well-known manufacturers, with reasonable structure and reliable performance.
Fence Trailer
The advantages of Chengda box semi trailer:
1. Fence trailer is designed and manufactured with high-strength steel and specially reinforced at the stress points, providing all the durability of high-strength steel and a unique structural design to maximize the payload and improve your profitability.
2. The parts of the fence trailer are all internationally renowned brands, with reliable quality, and the replacement parts are easy to purchase and replace.
3. The main beam and beam of the fence trailer are welded by automatic submerged arc welding, which is more sturdy and durable.
Livestock Trailer For Sale
Trailer Model | 3 Axles 40 Ton Side Wall Semi Trailer |
Overall Dimension (Lx W x H)(mm) | 12500*2500*1600+600mm |
Loading Weight( KG) | 40000 |
Axle Brand | 13TON Axle FUWA Brand |
Axle Number | Three |
Wheelbase(mm) | 7450+1310+1310 |
Suspension system | Mechanical Leaf Spring Suspension |
Leaf spring | 90(W)mm*13(Thick)mm*10 Layer |
The material of Main beam | Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
Side beam | Q235 16# channel steel |
Platform plate | 3mm Diamond plate |
Tire Type and quantity | 12R22.5 12units |
Rim | 9.00-22.5 |
Traction Pin | 2” or 3.5” |
Landing Gear | 28ton Chinese brand,double speeds |
Brake system | Dual Line braking system |
Brake air chamber | Six double chamber |
Front
Back
Packing:Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final pain

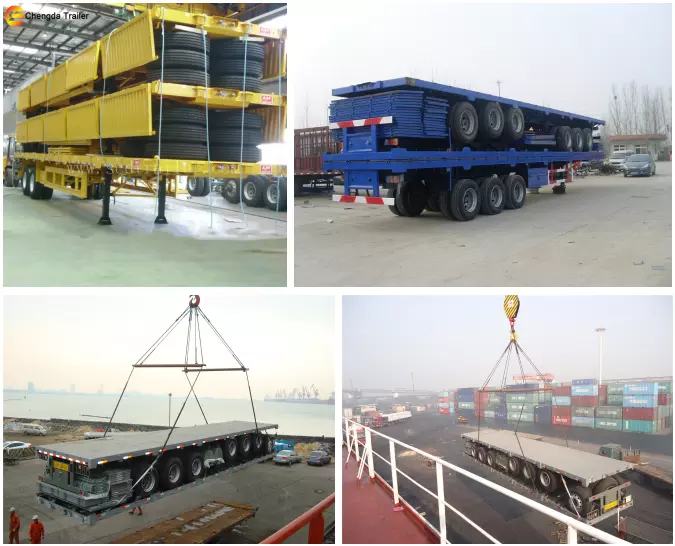

Roll on roll off (RORO) ship
Ro-Ro transportation is an advanced vehicle transportation method, which minimizes the wear and tear of trucks and trailers on the basis of ensuring transportation time.
Bulk carrier ship
The goods are loaded and transported in their natural form without packaging. Generally, trucks/semi-trailers are transported on plywood, and the cost is relatively low. We will wax the products and do anti-rust and anti-corrosion treatment to minimize the damage caused by seawater corrosion to trailers.
Container ship
Container transportation has requirements on the size of the goods, which can be selected according to the type of products ordered.
Shipping by Container
Bulk and Ro-Ro shipment
Our advantage
1. Our factory has a mature manufacturing process and has 18 years of history in manufacturing trailers, which can provide you with the most advantageous price.
2. Chengda has BV, ISO, 3C, WMI certification, and the quality is guaranteed.
3. Chengda is a professional export team integrating design, production and sales, which can meet your needs for accessories, trucks, trailers, etc.
We additionally deliver spare parts (authentic, oem, and alternative) for all kinds of trucks and trailers and fine to ensure the trucks and trailers being in top working conditions.
Customer Visiting
We have customer from Africa, South America, Middle east, East Asia, South east Asia customer visited before, Sincerely welcome to visit our facotry, you will never regret to choose us.
SINOTRUCK HOWO SALES CO., LTD
CHINA CHENGDA TRAILER MANUFACTURING CO.,LTD
If you are interested in further details, welcome to contact us ,thanks !
