HOWO Cement Mixer Truck
The tank body of HOWO cement mixer truck is composed of more than ten parts such as mixing drum, sub-frame, feeding and discharging device, control system, hydraulic system, electrical system, water supply system, idler and covering parts. Meet the requirements of 95% of enterprises for mixer trucks
Chat NowProduct Details
HOWO Cement Mixer Truck, equipped with Weichai 371 horsepower and Sinotruk HW19710 10-speed manual transmission, can be widely used in township roads, mines, tunnels, water conservancy projects, micro and small mixing stations, subways, national defense and other projects.
Video of mixer truck
Since its launch, HOWO cement mixer truck has become the first-class in the industry with many advantages such as strong power, comfortable driving, safe braking, intelligent control and high-end configuration.
Feature
Sinotruk HOWO 10M3 Cement Mixer Truck For Sale
1.Cement mixer chassis configuration:
howo Sinotruk HW76 four-point suspension cab
Weichai WD615.47 engine 371hp
10-speed gearbox of HW19710
250 double-layer girder, 16T reinforced rear axle
12.00R20 tires
Aluminum alloy fuel tank
HOWO Cement Mixer Truck
2. Tank configuration:
The effective volume of the tank is 10 cubic meters
The tank body is made of Q345 manganese steel plate, with a large design capacity and no leakage when climbing
Blades are made of wear-resistant alloy steel
Equipped with imported hydraulic reducer
Advantages of HOWO Cement Mixer Truck:
1. No segregation, no accumulation
After the smooth simulation experiment, the variable angle double logarithmic spiral blade is used, and the mixer and the flow hole are used.
2. Wear-resistant and durable
The mixing drum is made of full high-strength steel, and the blades are made of high-strength wear-resistant materials and are automatically welded.
3. Multi-loading
The heightened and extended blade arrangement is adopted, under the condition of large slope, the loading capacity is increased by 1 cubic meter compared with the same volume, and the volume utilization rate is increased by 10%.
4. Fast delivery
The optimized blade helix angle greatly increases the flow rate of concrete in the tank, achieving a discharge rate of ≥ 3 cubic meters per minute, which is at the leading level in the industry.
5. Customizable
According to your use and special needs, we can manufacture different mixing tank volumes with suitable horsepower and truck chassis.
howo cement mixer trucks with different specifications
Configure
Chassis model | ZZ1257N3841W (Overall dimension: 8560x2496x3800mm) |
Transmission | HW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m |
Drive Axle | HC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8. |
Front Axle | HF9, 9ton, drum brake |
Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO |
Steering | ZF8118, hydraulic steering with power assistance, LHD |
Tyre | 12.00R20 Radial plus one spare tyre (11 units) |
Fuel tank | 300 L capacity, with locking fuel cap |
Engine | WD615.47, 371hp, Euro II |
| Cabin | HW76 |

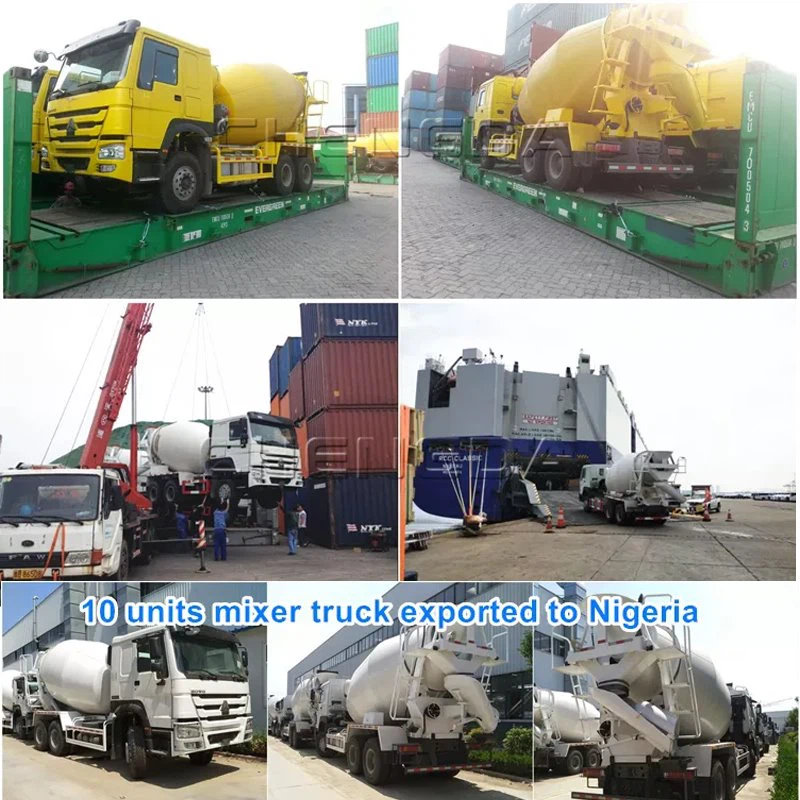

Packing & Delivery
Nudes and Waxes - We'll be looking for the best shipping methods to save on shipping costs!
1. Press the container
2. Bulk carrier
3. Ro-Ro
How to buy HOWO cement mixer truck?
1. Ask. Feel free to tell us your requirements
2. Free quotes available. We will send you a quotation according to your requirements.
3. Start the order. Confirm the order and pay the deposit, and the factory arranges the production and manufacturing inspection.
4. Shipping and Delivery. Inspection video will be provided after inspection. Shipping by sea after confirmation.
5. After sales and feedback. Feel free to contact us if you have any questions, looking forward to your feedback.
