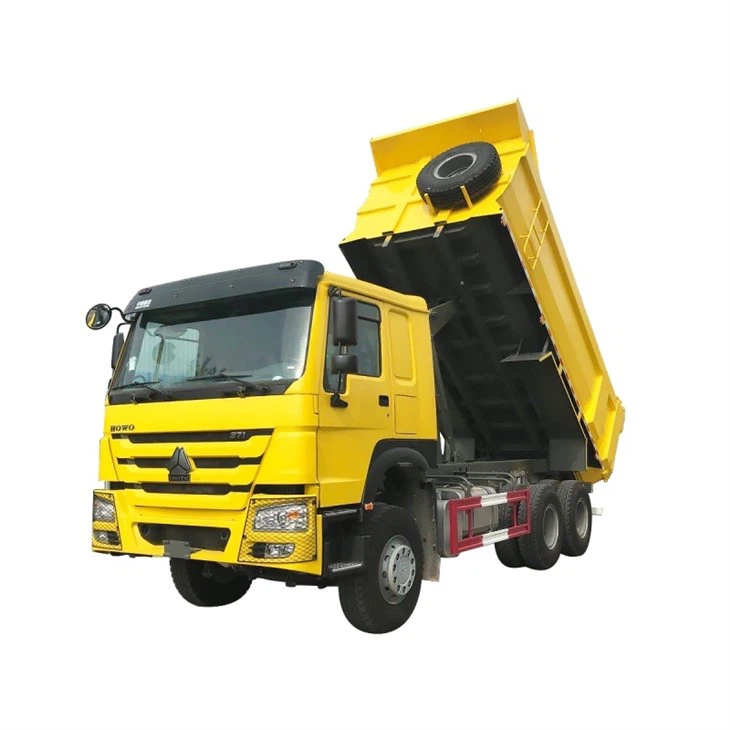

SINOTRUK HOWO Dump Truck
Brand: Sinotruk Howo, Optional: Shacman, Foton, etc.
Type: Dump truck
Horsepower: 351 - 450hp
Driving type: 4*2 6*4 6*2 8*4
Product Details
About Our Product
-SINOTRUK HOWO dump truck
We are a professional truck sales company with our own factory that can meet your custom needs.
In 2021, we have served more than 500 customers from all over the world, selling more than 600 trucks and semi-trailers, and are an excellent dealer of Howo and Shacman brands.
Our HOWO 6x4 6-wheeler 336 hp truck also has 8x4, 420hp, and more different configurations, Euro 2/4 Emission Standard can provide.
Below is our detailed configuration:
|
Truck Models |
ZZ3257M3647C |
|||
|
Truck Brand |
SINOTRUK-HOWO |
|||
|
Driving Style |
LHD |
|||
|
Dimension (LxWxH)(unloaded)(mm) |
8614x2496x3450 |
|||
|
Cargo body size (L*W*H, mm)(mm) |
5800x2300x1500 |
|||
|
Cargo thickness (mm) |
Bottom: 8mm, Side: 6mm |
|||
|
Lift type of Carriage |
middle lifting |
|||
|
Approaching angle/Departure angle (°) |
19/26 |
|||
|
Overhang (front/rear) (mm) |
1500/1739 |
|||
|
Wheel base (mm) |
3825+1350 |
|||
|
Max speed (km/h) |
75 |
|||
|
Maximum gradeability (%) |
40 |
|||
|
Minimum ground clearance (mm) |
314 |
|||
|
Minimum turning circle (m) |
20 |
|||
|
Curb weight (kg) |
12290 |
|||
|
Loading Weight (kg) |
30000 |
|||
|
Fuel tanker capacity (L) |
300 |
|||
|
Fuel consumption (L/km) |
23L/100 km |
|||
|
Clutch |
Single-plate dry clutch Φ430mm |
|||
|
Engine Model (Steyr technology, made in China) |
Fuel type |
Diesel |
||
|
Horse Power, max(kw/rpm) |
336hp |
|||
|
Emission |
EURO II |
|||
|
Model |
WD615, water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection |
|||
|
Bore |
126mm |
|||
|
Stroke |
130mm |
|||
|
Compression ratio |
29.8hp/l |
|||
|
Specific fuel consumption |
195g/kwh |
|||
|
Transmission |
Model |
HW19710, 10 forwards and 2 reverse |
||
|
Brake system |
Service brake |
Dual circuit compressed air brake |
||
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|||
|
Auxiliary brake |
Engine exhaust brake |
|||
|
Steering system |
Model |
ZF8118 hydraulic steering with power assistance |
||
|
Front axle |
HF9 |
|||
|
Rear axle |
HC16 |
|||
|
Tyre |
12.0020 |
|||
|
Electrical system |
Battery |
2X12V/165Ah |
||
|
Alternator |
28V-1500kw |
|||
|
Starter |
7.5Kw/24V |
|||
|
Cab |
HW76cabin, one sleeper, with air conditioner |
|||

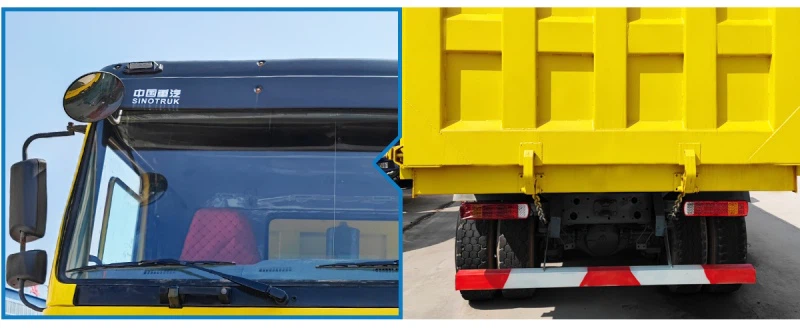

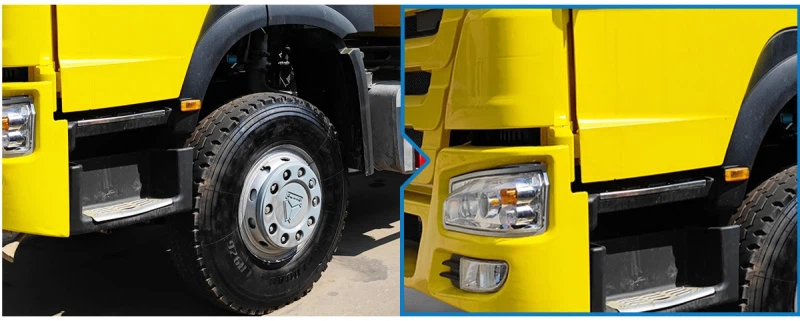

Product Description
-SINOTRUK HOWO dump truck
Heavy Five-plate Spring, Hydraulic lifting system, HW76 Cab, a single sleeper with Air conditioner, All steel forward control,5400x2300x1500mm, Steel thickness (mm): Bottom 8, front6mm, side 6.
Details can be customized according to your needs~
Our Shipping
Transport the SINOTRUK HOWO dump truck
By flat rack, bulk cargo, or Roll-roll, You can choose the best one for delivery!
Certification
BV SGS ISO9001 WMI for the SINOTRUK HOWO dump truck

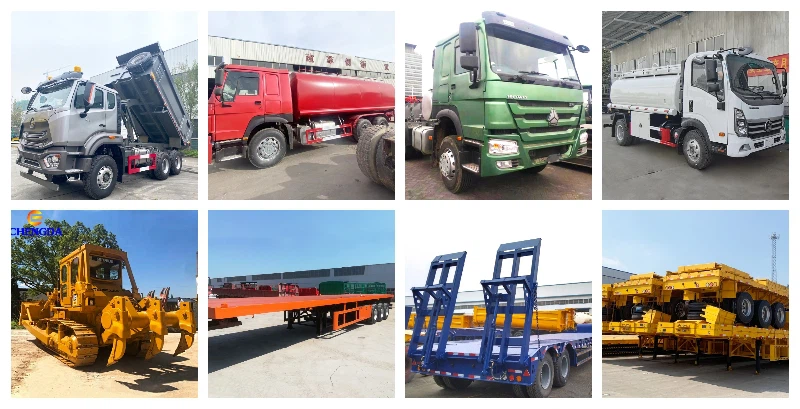

Our Main Products
In addition to the dump trucks introduced in this article, we also sell tractor trucks and semi-trailers, etc, such as heavy duty low bed semi-trailers, flatbed container semi-trailers, skeletal container semi-trailers, side wall semi-trailers, cargo box trailers, dump semi-trailers, bulk cement tank semi trailers, fuel tank semi-trailer, stainless steel tank trailer, aluminum tank trailer, car carrier semi trailer, and can be manufactured as the special design.
As the first class agent of SINOTRUCK and SHACMAN, we can export the SINOTRUCK and SHACMAN brand tractor head, dump truck, fuel tanker truck, water tanker truck, cargo truck, concrete mixture truck, etc with great price and service advantages.
Except for trucks and trailers, our company can also provide trailer parts and engineering machinery such as cranes and excavators, etc.
Our Service
1. We can supply appropriate options in accordance with the genuine state of affairs of clients (type of items to be transported, street conditions, loading weight, etc.).
2. Our income group of workers and layout engineers have years of on-the-job journey to meet your customized needs
3. Some merchandise can be wholly customized, please seek advice from us if you need
4. We additionally promote corresponding add-ons for dump trucks and semi-trailers.
5. BV SGS CCC ISO WMI Certificate of conformity.
6. English operation Manual.
7. We can supply some free add-ons in accordance with your needs, such as accelerators, wrenches, etc.

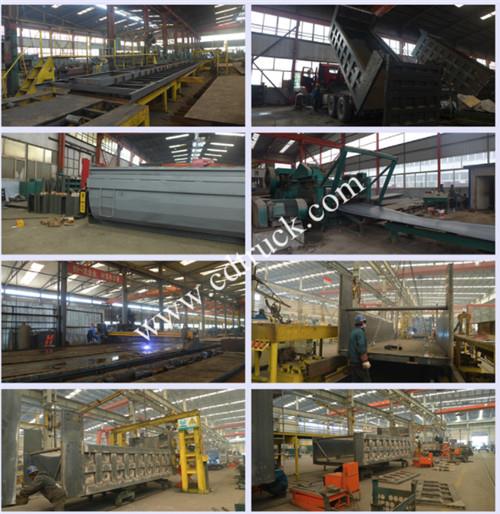

About Our Workshop
Welcome to contact us for more information, please look forward to the new models in 2022, you can follow our website articles for the latest information!
