Foton GTL Tractor Head
Product Details
Features of Foton GTL Tractor Head
1. The lower front, side, and rear protectors of the truck body and door frame structure meet the requirements of European ECE R93 collision regulations. The whole vehicle has passed the TUV Rheinland safety certification.
2. Equipped with ABS+ASR, 22.5-inch disc brakes, and manual trailer brake valve to ensure a safe and effective braking system. Exhaust brakes, Jacobs secondary brakes, and hydraulic retarder increase safety on downhill braking.
3. The front and rear view mirrors have no blind spots, providing drivers with a wider field of vision.
4. The seats are comfortable and secure, with integrated three-point harnesses.
Specification of Foton GTL Tractor Head
| Announcement model | BJ4259Y6DHL-12 | Drive form: | 6X4 |
| Wheelbase | 3300+1350mm | Engine: | Foton Cummins X13NS6B520 |
| Gearbox | 16-speed gearbox | Rear axle ratio: | 3.364 |
| Body length | 7.115 meters | Body width: | 2.525 meters |
| Body height | 3.46 meters | Front track: | 2020mm |
| Rear Track | 1865/1865mm | Vehicle weight: | 8.1 tons |
| Total mass | 25 tons | Total Traction Mass: | 40 tons |
| Maximum speed | 89km/h | Origin: | Huairou, Beijing |
| Tonnage class | Heavy Truck | Version: | Basic |
| Engine parameters | |||
| Engine model | Foton Cummins X13NS6B520 | Engine Brand: | Foton Cummins |
| Number of cylinders | 6 | Fuel type: | diesel fuel |
| Cylinder arrangement | In-line | Displacement: | 12.9L |
| Emission Standards | euro 2 | Maximum horsepower: | 520 hp |
| Maximum output power | 382kW | Maximum torque speed: | 1000-1400rpm |
| Rated speed | 1800rpm | —— | —— |
Packaging and shipping
Usually, our trucks can be shipped by ro-ro ship or bulk carrier or container, or flat rack.
Packing Details: Roll-Roll or Bulk based on your country's ship and port. If the truck is on deck, we will spray anti-rust paint for free. Usually, we will put the truck in the cabin.
Delivery details: 15-35 days after receiving the 30% deposit.

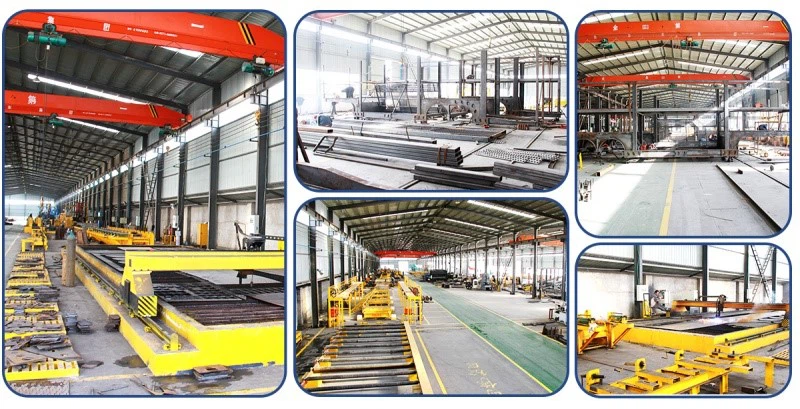

About us
Established in 2005, Chengda Group is one of the qualified manufacturers of various machinery. Integrating production, scientific research and development, and a professional sales team, all these advantages can provide comprehensive services for semi-trailers, tractors, dump trucks, and trailer accessories. Our company is a leading supplier in this industry, with an annual export volume of more than 50 million US dollars, with revenue of nearly 600 million yuan. With high-standard machinery and automation equipment, a strong R&D team, and an elite sales team, in addition to a mature after-sales system, we can meet the different needs of customers.
