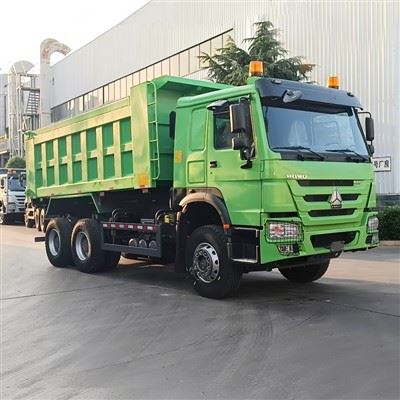

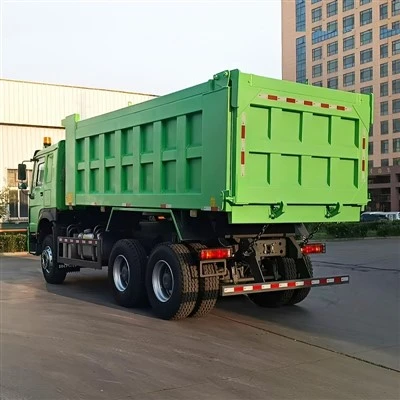

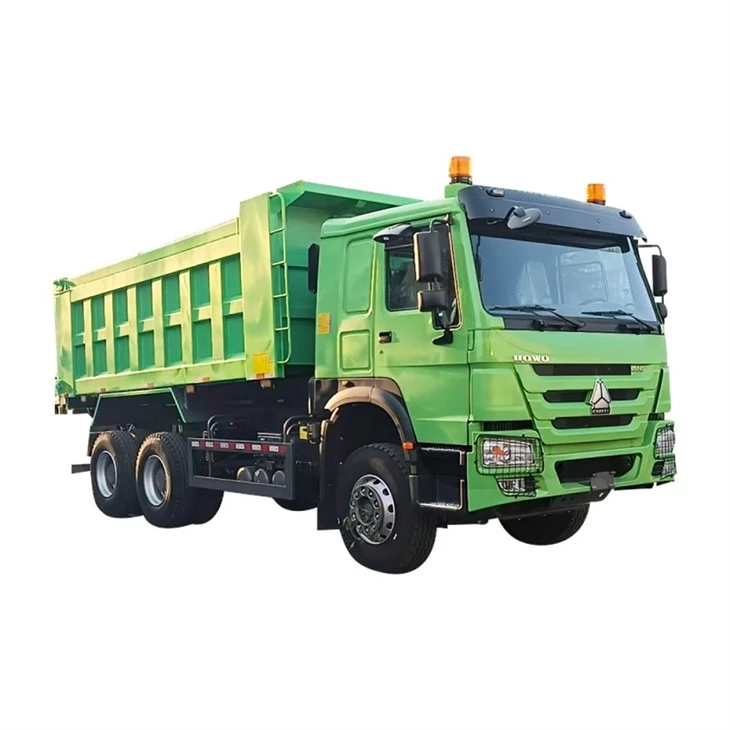

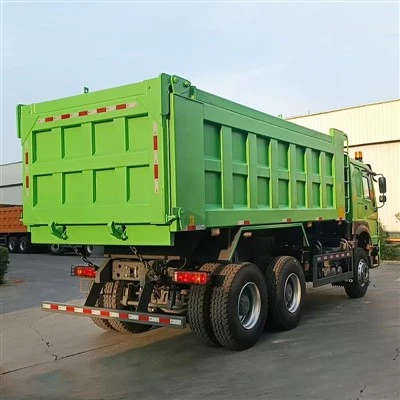

Sinotruk Brand Howo 336HP 10 Wheeler Dump Truck

Name: China Sinotruk Brand Howo 336HP 10 Wheeler Dump Truck Manufacturers and Factory - Price - SINOTRUCK
Brand: Howo
SKU: 32179375

The Sinotruk Brand Howo 336HP 10 Wheeler Dump Truck is one of the most reliable, cost-effective, and widely used commercial vehicles in global construction, mining, and earthmoving industries.

Chat Now

Product Details

The Sinotruk Brand Howo 336HP 10 Wheeler Dump Truck (also known as a Howo 10 wheel tipper truck or heavy duty dump truck) is one of the most reliable, cost-effective, and widely used commercial vehicles in global construction, mining, and earthmoving industries. Powered by Sinotruk's proven WD615 engine technology, this 10 wheeler dump truck is engineered to deliver high torque at low speeds, ensuring outstanding off-road capability and gradeability under heavy payloads.

Whether hauling sand, gravel, crushed stone, mining ore, or construction waste, the Howo 336HP tipper provides an ideal combination of structural strength, low maintenance cost, and rapid operational turnover for fleet operators across Africa, Southeast Asia, Central Asia, and South America.

Sinotruk Howo 6x4 10 Wheel Tipper Truck

Technical Specifications

Truck Model		ZZ3257N3647A
Truck Brand		SINOTRUK -HOWO
Dimension(Lx W xH)		8214x2496x3386
Cargo body size (LWH, mm)		5400x2300x1400, 18.63m3
Cargo body thickness(mm)		bottom: 8mm, side: 6mm,
Lift type of Carriage		Ventral lifting
Approaching angle/Departure angle(掳)		19/26
Overhang(front/rear) (mm)		1500/1739
Wheel base (mm)		3625+1350
Max speed(km/h)		75
Curb weight(kg)		12290
Loading Weight(kg)		30000
Fuel tanker capacity		300L with locking fuel cap
Fuel consumption(L/100km)		32
Clutch		Single-plate dry clutch 桅420mm
Engine Model	Model	WD615.47, 4- stroke direct injection diesel
		engine, 6 cylinders in line with water
		cooling, turbo-charging and inter cooling
	Horse Power, max(kw/rpm)	371HP
	Emission Standard	EURO II
Transmission	Model	HW 19710, 10 forwards and 2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy,
		compressed air operating on rear wheels
	Auxiliary brake	Engine exhaust brake
Steering system	Model	ZF8098
Front axle	HF9
Rear axle	HC16
Tire	12.00-20 11 pieces
Electrical system	Operating voltage	24V, negative grounded
	Starter	24V, 7.35KW
	Alternator	28V, 1500W
	Batteries	2*12V. 165Ah
	Cab	HW76 cab
		(one sleeper, with air-conditioning)

Key Features & Advantages

1. Proven Fuel-Efficient Engine Performance: Equipped with the 336HP WD615 series engine, this Howo tipper generates substantial low-end torque for tough slope climbs while optimizing fuel consumption. Its straightforward mechanical fuel system (Euro 2/3 options) offers exceptional tolerance to variable fuel qualities, minimizing maintenance downtime in remote work zones.

2. High-Strength Reinforced Cargo Body: The dump body is built from thick, abrasion-resistant Q345B steel with reinforced side ribs. Available in standard rectangular shapes for heavy rocks or U-shaped boxes for quick sticky soil discharge, the bucket handles severe impact loads during excavator filling.

3. Durable Axles & Heavy Duty Chassis Frame: Features the HC16 double reduction drive axle with built-in differential locks for high traction on muddy or loose soil. The double-layer steel frame chassis resists twisting and sagging under 25-30 ton payload conditions.

4. Ergonomic & Safe Driver Cabin: The HW76 cab features an ergonomic dashboard layout, adjustable air suspension seat, high-capacity air conditioning system, and a comfortable rear sleeper berth for long working hours on job sites.

details

Applications & Operating Scenarios

1. Construction & Infrastructure Projects: Perfect for hauling heavy materials such as sand, gravel, crushed stones, asphalt, and concrete mixes to urban building sites, road construction projects, and bridge developments.

2. Mining & Quarry Operations: Engineered with heavy-duty reinforced steel and high-torque axles to perform under severe working conditions, handling rough ores, rocks, and raw minerals in open-pit mines and quarries.

3. Earthmoving & Excavation Transport: Ideal for earthwork contractor fleets, enabling rapid clearing of excavated soil, site leveling debris, and demolition waste with high operational turnover.

4. Intermodal Logistics & Port Terminals: Specifically designed for continuous heavy-load operations between ocean ports, inland container depots (ICD), and highway logistics hubs.

Applications

Why Source Sinotruk Howo Trucks from Our Factory?

Strict Pre-Delivery Inspection (PDI): Every Howo 336HP dump truck undergoes comprehensive engine diagnostics, hydraulic lifting tests, and brake testing before port delivery.

100% Genuine Spare Parts Support: Full availability of original factory engine parts, transmission gears, filters, and hydraulic seal kits.

Tailored Fleet Configurations: Custom options for cargo box dimensions, steel thickness, tire patterns, and cabin colors based on destination climate and road regulations.

Cost-Effective Maritime Logistics: Secure shipping options including Ro-Ro (Roll-on/Roll-off) and Bulk Cargo with anti-rust marine wax coating to prevent saltwater corrosion.
