Shacman Tractor Head
Horsepower:351 - 450hp
Drive Wheel:6x4
Emission Standard: Euro 2
Engine Capacity:> 8L
Fuel Type: Diesel
Brand Name: Shacman
Size:6985x2496x3850mm
Product Details
Shacman tractor head has a fashionable and novel appearance design, and the interior space is spacious and comfortable. Using Weichai + Fast + Hande gold power chain, reliable performance, and excellent reputation, is a popular choice for customers in Africa and Southeast Asia.
According to whether or not a tractor truck's support can move or no longer, is divided into fixed, movable, and lifting types.

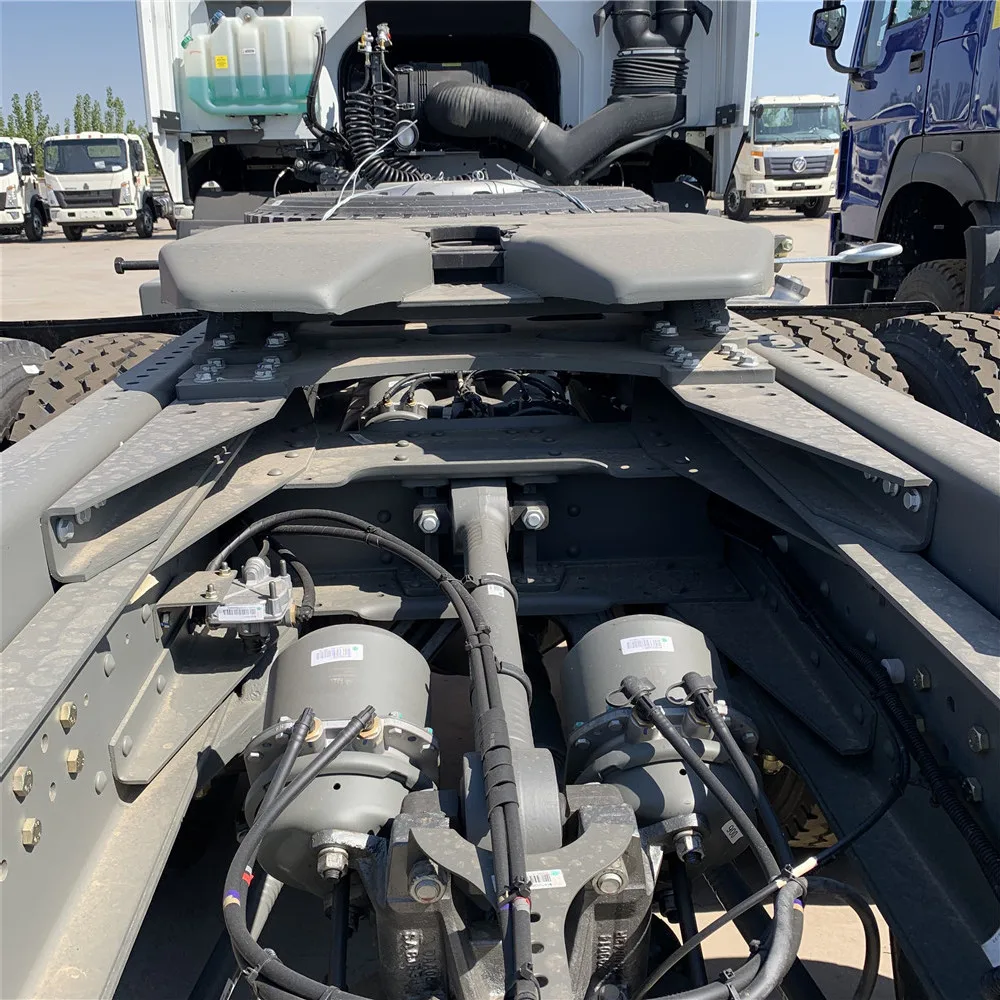

The left and right supports are mounted to the traction base using bolts, and the traction base is constant to the girder of the tractor.
Tractor Application
Shacman tractor head can be used with dump semi-trailer, oil tank semi-trailer, powder tank semi-trailer, and van semi-trailer, suitable for use in mines, construction sites, and other environments.
Specifications
Overhang(front/rear) (mm) | 1500/700,725 | |
Wheelbase (mm) | 3200+1400,3225+1350 | |
Max speed(km/h) | 102 | |
Curb weight(kg) | 11930 | |
Loading Weight(kg) | 40000 | |
Engine (Steyr technology, made in China) | Model | WD615.47, water-cooled, four strokes,6 cylinders in line with water cooling, turbocharged and intercooler, direct injection |
Fuel type | Diesel | |
Horse Power, max | 371HP | |
Emission | EURO2 | |
Fuel tanker capacity(L) | 400 | |
Transmission | Model | HW19710 |
Brake system
| Service brake | Dual circuit compressed air brake |
Parking brake | spring energy, compressed air operating on rear wheels | |
Steering system
| Model | ZF8118 |
Front axle | HF9 | |
Rear axle | HC16 | |
Color | Red can be optional | |
Tire | 1200R20 11pics | |
Features of Shacman tractor head
Weichai high-powered engines joined with AVL, BOSCH efforts to build a golden power system.
Cummins high powered engines and five key systems lead the world.
FAST 12-speed transmission, the unique structure of twin shaft main box, auxiliary box using fine pitch helical gear design.
Man 7.5 tons axle and 13 tons maintenance free 2.714 ratios single reduction axle.
Internationally famous brand - Williams pedal mechanism, imported ZF steering machine, Eaton clutch.
Shipping & Packing
Sinotruck Guarantee parts: ENGINE/GERAR BOX/AXLE COMPLETE/SUSPENSION ETC.
Guarantee period months or 30,000km from the date of the shipment whichever comes first.
We have our own spare parts departments and have strong production and distribution capability. We always do our best to after-sale service and put our customer's interests in the first place.
In the attachment, send you wear parts for you. If your site has no Sinotruck repair shop, also you can buy some for the inconvenience. We can offer you it originally.
Why Choose Us?
1. We cooperate with Sinotruk Howo \ Beiben \ Foton \ FAW \ Jianghuai, Shackman, and other factories, Chengda can provide Shacman tractor head and semi-trailer solutions according to the customer's national road conditions, cargo transportation, and loading weight requirements.
2. A complete range of trucks and semi-trailers for sale, such as dump trucks, mining dump trucks, tractor trucks, water tank trucks, concrete mixer trucks, oil tankers, garbage trucks, freight trucks, port terminal tractors, flatbed semi-trailers, Low flatbed semi-trailer, skeleton semi-trailer, etc.
3. Better after-sales service:
Warranty Period: 6 months or 30,000 km from the date of shipment, whichever comes first.
We have our own accessories department with strong production and distribution capabilities. We always do our best to provide after-sales service and put the interests of our customers first.
In the attachment, we will send you the worn parts. If you don't have a Chinese truck repair shop here, you can also buy some inconvenient ones. We can provide you with the originals.
