Shacman X3000 6x4 Tractor Head

Brand: Shacman
Drive Wheel:6x4
Driving Style: Left-Hand Driving or Right-hand Driving
Place of Origin: China

Chat Now

Product Details

The Shacman X3000 6x4 tractor head has high vehicle weight requirements and a relatively small operating radius. Its airbag-equipped driver's seat prioritizes passenger comfort and meets the demand for a comfortable cab. Its low weight and low fuel consumption have earned it widespread recognition for its cost-effectiveness. This product perfectly meets the vehicle's intended use and the basic needs of both driver and passenger. Choosing this Shacman 6x4 tractor head ensures a reliable, efficient, and durable tractor, bringing greater value and returns to your logistics operations.

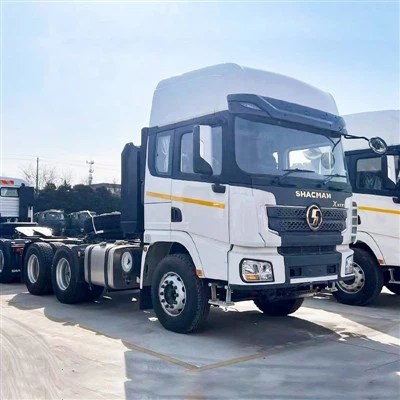

Shacman X3000 6x4 tractor head

Features of Shacman X3000 6x4 tractor head

1. The cab utilizes a European-style frame structure and has passed the most stringent ECE-R29 crash test.
2. Optimized shifting: The telescopic axle shifting mechanism absorbs chassis vibration, ensuring no spontaneous shifting and improved control performance, while also enhancing cab sealing.
3. Weichai four-valve engine: Powerful and high torque output, with low engine speed at maximum torque, offering the best power and explosiveness in the industry.
4. High transmission speed and dual intermediate shafts for high reliability; wide speed ratio range and strong climbing ability, suitable for various operating conditions; small speed ratio difference for high fuel economy.
5. Next-generation electrical system: Advanced CAN bus technology from Germany's BOSCH features automatic fault detection. The newly upgraded electrical system has been proven in the market for 12 million kilometers, ensuring stable performance and safe and convenient operation.

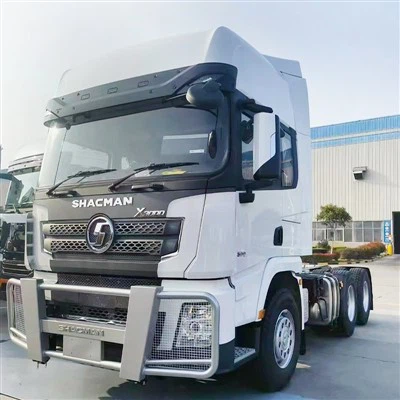

Shacman X3000 tractor details

Specifications of the Shacman X3000 tractor head

Transport type	Heavy loading transportation
Logistics type	Food, fruit ,wood ,electric appliance,container
Distance (km)	≤2000km
Road type	expressway, high grade highway
Drive	6×4
Max weight (t)	≤65
Cruising speed/Max speed (km/h) /	50~65/90
Loaded speed (km/h)	50~70
Engine	WEICHAI POWER WP12.375E40
Emission standard	Euro 4
Transmission	FAST 12JSD180T
Clutch	430 diaphragm imported or Chinese manufactured
Frame	(940-850)×300(8)
Wheel base(mm)	3175+1400
Front axle	7.5 ton MAN drum type
Rear axle	13 ton MAN double stage casting (drum)
Tire	12.00R20, 11.00R20, 12.00R22.5, 11.00R22.5
Suspension	Multi leaf spring configuration,2 main piece + 2 U-bolts
Fuel	Diesel
Capacity of the fuel tank	400L
Dimensions (L×W×H)	6825X2490X3980

Packaging and Shipping

1. Bulk cargo, no need to disassemble any parts, shipped as a whole. Advantages: Affordable price and complete delivery, but the product is susceptible to seawater corrosion.
2. Container shipping is inexpensive and effectively protects the machinery during transportation. However, if the machinery is disassembled, you will need to assemble it yourself upon receipt.
3. Flatbed container shipping is similar to container shipping, but flatbed containers can transport extra-high machinery.
4. Roll-on/Roll-off (Roll-Off) is more expensive, but the cargo is better protected in the cargo hold.

packing and shipping

About Us

Established in 2005, our company specializes in manufacturing various trailers, including container trailers, transport trailers for construction equipment, Shacman X3000 6x4 tractor heads, and trailer spare parts. We have advanced automated equipment and excellent quality control.

With good quality and reputation, we have obtained ISO, CCC, CE, and B&V certificates from the government. Our products are popular in South Asia, the Middle East, Africa, and South America.
