Used Shacman Dump Truck
Product Details

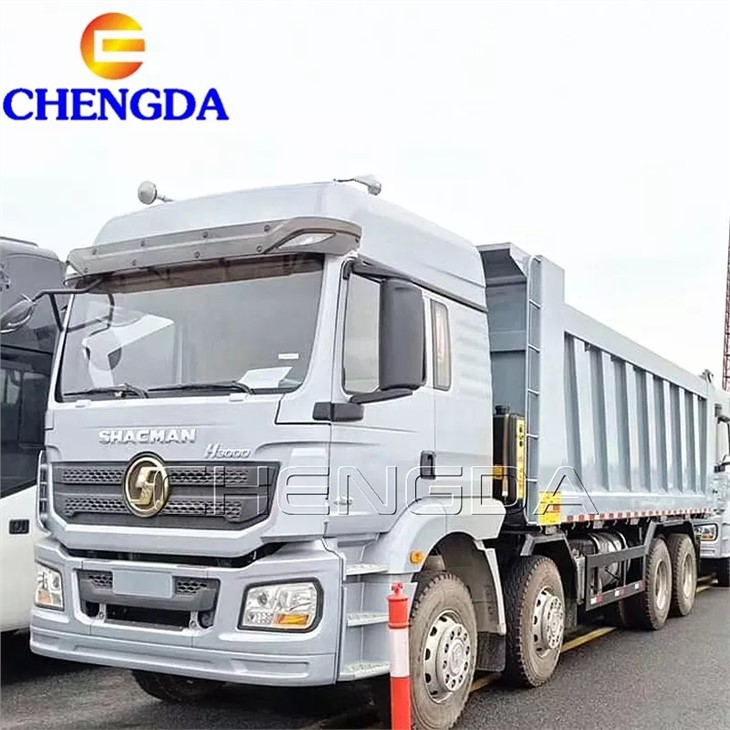

The used Shacman dump truck is composed of a dump truck chassis, a dump box, and a dump truck hydraulic cylinder. Dump trucks are mainly used to transport sand, stones, gravel, etc.
Features of used Shacman dump truck
1. used Shacman tipper trucks are based on international technical concepts, driving comfort, and reliability.
2. We have enough used trucks with long service life to meet your different requirements.
3. Shacman trucks are suitable for normal or bad road conditions, with low fuel consumption, combined with Mann and Steyr technologies.
4. We have 380hp to 420hp to choose from, the used dump truck can change the cab, and tires according to your needs.
5. Please provide your requirements, we can provide you with the best truck plan and choice of commercial shipping methods.
Specification of used Shacman dump truck
| Model | SX33156V366 | |
| Max. running speed (km/h) | 85 | |
| Drive System | 8x4 | |
| Dimensions(L*W*H)(mm) | Overall | 10329x2490x3450 |
| Dump Body | 7400x2300x1500 | |
| Tipper thickness (mm) | Bottom 8, side 6 | |
| Hydraulic lifting system | HVYA front lifting | |
| Approach /departure angle (°) | 28/20 | |
| Kerb weight (kg) | 14600 | |
| Total mass (kg) | 31000 | |
| Wheelbase (mm) | 1800+3575+1400 | |
| Overhang (mm) (front/rear) | 1525/2054 | |
| Track width (mm) (front/rear) | 1939/1850 | |
| Engine | WP12.430E201(Weichai engine, Euro 2) | |
| Horsepower | 385 hp | |
| Ma. torque (N,m) | 2060 | |
| Displacement (L) | 11.596L | |
| Gearbox | 12JSD200T-B+QH50, FAST Gearbox | |
| Clutch | 430 Diaphragm type | |
| Steering | ZF technology | |
| Cab | X3000 mid-lengthened Cabin with A/C & single-sleeper | |
| Axle | Front axle | 9.5T MAN technology |
| Rear axle | 16Ton MAN casting axle, final ratio 4.769 | |
| Tyre (radial tyre) | 12.00R20 | |
| Oil tank | 400L(ALLOY) | |
Our Advantage
Our company is a responsible used truck company, our company takes the overall condition, performance, and details of used Shacman dump trucks very seriously. Before we deliver to customers, each truck must pass the early stage of "optimized selection of used trucks, detection and replacement of key components", and "all-around debugging of used trucks, comprehensive inspection of used trucks" before delivery. We not only emphasize the overall performance of the truck but also pay more attention to the details and performance of key components to ensure that every used truck is of high quality and good performance.
1. We can offer you the best price.
2. We can provide you with good after-sales service.
3. We have our own truck parts department to serve you.
4. We can also provide you with Howo, Beiben, and Foton trucks for your choice.
