4 Axles Container Skeleton Trailer
Product Details

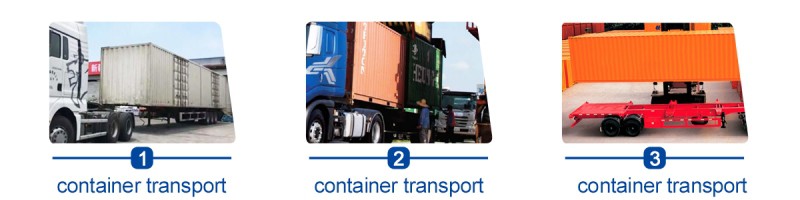

Container frame trailers are widely used, mainly for long-distance freight, such as 20-foot or 40-foot containers.
The 4 axles container skeleton trailer adopts high-strength international steel, and the whole vehicle has a small weight, which ensures its anti-deformation, anti-vibration, and anti-bump ability, and meets the bearing capacity of different roads.
Specification of 4 axles container skeleton trailer
| Dimension(mm): | 12400x2500x1500mm |
| Loading capacity(ton): | ≤60T |
| Axles: | 4 axles, 13T/16T, FUWA/ BPW |
| Tire: | 13 units, 12.00R22.5 or 315/80R22.5 |
| Rim: | 9.00-22.5 or 9.75-22.5 |
| Suspension: | Mechanical suspension or Air suspension |
| Spring Leaf: | 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets) |
| King Pin: | JOST brand 2.0 or 3.5 inches (bolted or welded) |
| Landing Gear: | JOST brand D200T or Chinese brand 28tons(double-speed) |
| Main Beam: | Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel |
| Brake Chamber: | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank |
| Twist Locks: | 4,8,12 sets (lifting or screw type) |
| Valve: | WABCO valve (especially intended for the oversea market) |
| ABS: | Optional |
| Light: | LED light (especially intended for the oversea market) |
| Voltage: | 24V |
| Socket(Receptacle): | 7-pin Socket (for 7-wire harness) |
| Painting: | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats |
| Tool Box: | 1m x 0.5m x 0.5m (The toolbox contains 1 tire spanner, 1 gudgeon sleeve, and 1 cranking bar. Its size can be tailored to suit your needs) |
| Shipping Terms: | Transported by the bulk carrier in a RORO or 40ft container |
Why choose us?
1. We are the manufacturer ourselves, we have more than 17 years of manufacturing experience, with competitive prices and reliable quality.
2. Experienced engineers and workers have advanced equipment and technology under efficient management to ensure timely delivery.
3. A variety of solutions to meet your requirements, timely reply by phone/email.
FAQ
1. Is your company a factory or a trading company?
We are an integrated company of industry and trade, and we have been engaged in the semi-trailer industry in China for more than 10 years. Our factory is very famous in Shandong, China.
2. What is the qualification guarantee you provide and how do you control the quality?
1) We have established procedures to inspect products at various stages of the manufacturing process: raw materials, in-process materials, verified or tested materials, finished products, etc.
In addition, we have developed a program to identify the inspection and testing status of all items at various stages of the manufacturing process.
2) 100% inspection of the assembly line. All controls, inspections, equipment, fixtures, total production resources, and skills are checked to ensure they consistently achieve the required level of quality.
3. What is your MOQ?
A unit trailer or truck.
4. How do you transport semi-trailers and trucks?
We ship vehicles in bulk or in containers. Our factory has long-term cooperation with a shipping agency, which can provide you with the lowest shipping costs.
5. Can you meet my special request?
Yes! We are a direct manufacturer, that can be customized according to your needs, and we have a strong production capacity and R&D ability!
