Low Bed Chassis Trailer
Product Details
Low bed chassis trailers are often used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) overloaded.
Specifications of low bed chassis trailer
| Dimension and Weight | |
| Overall Dimension(mm) | 18000x3000x1650mm |
| Working Deck Dimension(mm) | 8000x3000x1350mm |
| Platform thickness(mm) | 4mm |
| Main Beam | “H”main beam design,Q345B carbon steel,the height of the beam is 500 mm,upper plate is 16mm,down plate is 18mm, middle plate is 10 mm. |
| Wheelbase | 7,650mm+1,310mm+1,310mm |
| Payload | 60,000kg |
| Tare weight | 9,000kg |
| G.V.W.R. | 69,000kg |
| Function | To transport bulk goods or heavy equipment like loader or excavator |
| Running System | |
| Axle | 16Ton, ZY brand optional FUWA brand,one hundred fifty thousand Kilometers no need maintenance |
| Axle Number | Three |
| Tire | 1100R20, 16 pcs Taitong brand |
| Rim | 8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| Suspension system | Common Mechanical Suspension |
| Steel Spring | 10/10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
| Electrical System | Chinese standard 24V lighting system |
| Brake system: | Dual line pneumatic brake, SAE hose and connector,optional ABS |
| Brake air chamber | 6 units T30/30 spring brake chambers |
| Emergency relay valve | Wabco relay valve |
| Traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster |
| Landing Gear | Zhenhua brand 28ton |
Customer visit
We sincerely invite customers to come to our factory to inspect the products, and we will also taste local delicacies and visit local attractions with customers, our goal is to provide customers with the best truck trailer scheme and comfortable travel.

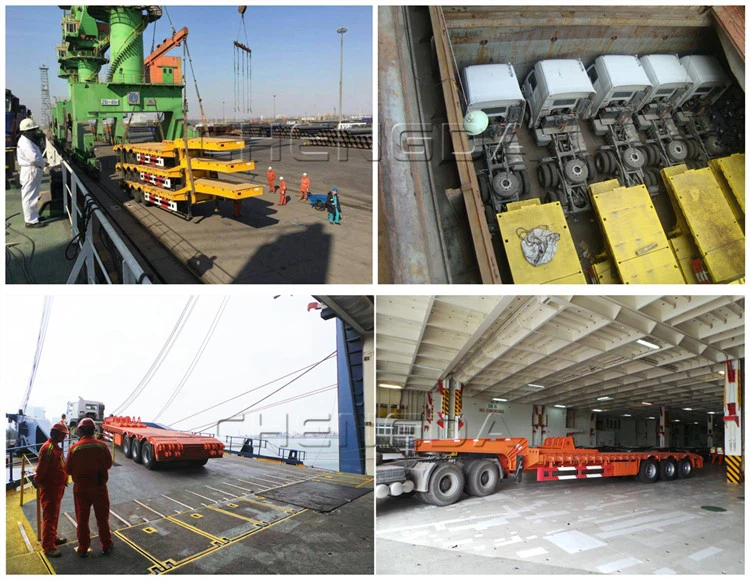

Packing & Shipping
1. Wax for nude packing, container, ro-ro ship, or bulk cargo ship for bulk cement trailer, also according to customer's special requirements.
2. We also provide reasonable packaging and transportation solutions to save money and make transportation safe.
Why choose us?
1. Factory direct sales, no middleman, no agency fee, so low prices, and high quality only come from us.
2. Manufactured directly from our own factory, various needs can be customized, such as the customized logo.
3. Machine welding, beautiful appearance, guaranteed bearing capacity, and extended service life.
4. Environmentally friendly dyes, the product paint surface is smooth, flat, and shiny, and the product details are perfect.
