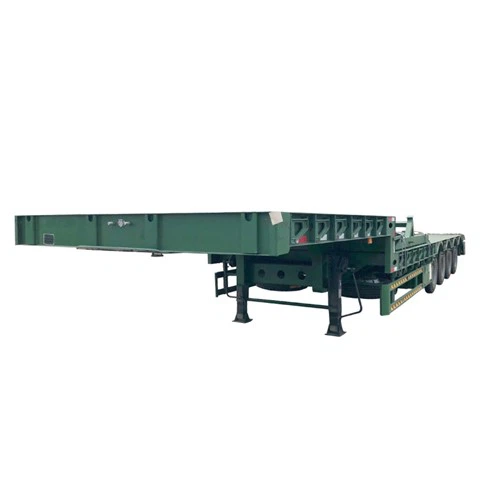

3 Axle Lowboy Trailers

Chat Now

Product Details

A 3 axle lowboy trailers is a semi-trailer with an ultra-low cargo platform, also known as a sunken deck. The low bed part has no side walls. The rear axle number can be 2-4 axles. It mainly specializes in the transportation of crawler cranes, excavators, crawler loaders, bulldozers, railway equipment, and other crawler/tire equipment. Thanks to the low bed design, the trailer has high passability, can pass through bridge arcs and tunnels, and reduces the center of gravity of the cargo.

3 axle lowboy trailers

Features of 3 axle lowboy trailers

1. A mechanical or hydraulic climbing ramp is an option for easy loading and unloading
2. Lower height (adjustable height for hydraulic and air suspension)
3. Removable gooseneck is an option
4. Small turning radius, steering angle up to 55°
5. Automatic and manual all-wheel steering
6. The sunken deck minimizes the platform height of the trailer, improving the accessibility and stability of over-height cargo
7. The side bracket is an option (for increasing the overall width), removable and swingable

details

Parameters of 3 axle lowboy trailers

Overall Dimension(mm)	18000x3000x1650mm
Working Deck Dimension(mm)	8000x3000x1350mm
Platform thickness(mm)	4mm
Main Beam	"H"main beam design,Q345B carbon steel,the height of the beam is 500 mm,upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase	7,650mm+1,310mm+1,310mm
Payload	60,000kg
Tare weight	9,000kg
G.V.W.R.	69,000kg
Function	To transport bulk goods or heavy equipment like loader or excavator

Packaging and transportation

Bulk carrier
RoRo ship
40' frame box

shipping

Why choose us?

Chengda Group is a professional 3 axle lowboy trailers manufacturer, and we have obtained many patents and honors. We have perfect testing equipment to ensure that each semi-trailer meets the standards. We provide customized semi-trailers and 24-hour professional services.

our factroy
