3 Axles Lowboy Trailer

3 Axles Lowboy Trailer

3 Axles Lowboy Trailer Product Description Detail of Product \ Front Back T ire Landing Gear Axle and Suspension King Pin Packing & Shipping Packing:Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final pain 1. Shipping by 40HQ or 45HC container,need to be...

Chat Now

Product Details

Product Description

Our company has more than 10 years of production experience and advanced technical ability.

Our RGN lowbed trailer can also carry excavators, bulldozers, and other construction machinery equipment.

-We provide possibility that customers pick out their kind of trailers from the size, capability, color, and amount of axle.

Many customers in the construction industry need our low-bed trailers, which are used to transport building materials(concrete blocks) and some construction machinery equipment. Construction workers use lowboy to transport bulk materials such as cement and beams

Because we possess own factories in China, we are able to create more durable and high quality trailers and trucks to meet your requirements.

Low bed trailer

Specifications:

Main Dimensions

Trailer Model

3 Axle low bed semi Trailer

Total Size

13000*3000*1650mm

Working Size(L*W*H)

9000*3000*1300mm

Curb Weight

9000KG

Loading Weight

60000KG

Departure Angle

16

Wheelbase

7650+1310+1310mm

The material of Main Beam

Q345B carbon steel,the height of the beam is 500 mm, upper plate is16mm,down

plate is 18mm, middle plate is 10 mm.

Side Beam

16# channel steel Q235

Platform plate

3mm Diamond plate

Running System

Suspension system

Mechanical Leaf Spring Suspension

Leaf spring

90(W)mm*13(Thick)mm*10 Layer

10/10/10 leaf spring suspension

Axle Brand 3 axle 13T Fuwa Brand

Tire Type and quantity

1100R20 12units  Taitong Brand

Ladeer

With Ladder

Traction Pin

2” or 3.5”

Spare Wheel Bracket

2 pieces

Tool

1 Standard

Landing Gear

28Ton Standard

Brake system

Dual line pneumatic brake, SAE hose and connector,optional ABS

6 units T30/30 spring brake chambers

Electrical system

voltage:24V 2.Receptacle:7ways(7wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable


Details of Lowboy

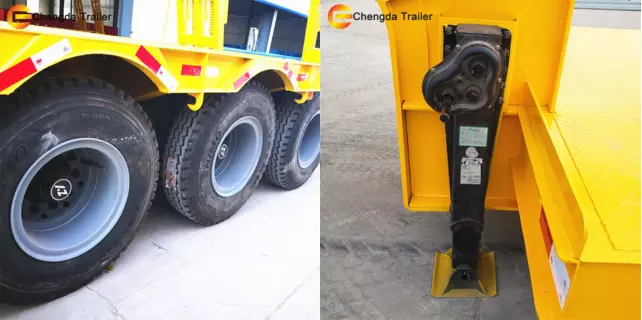

                                     Tire                                                                           Landing Gear

Lowbed Details

                       Axle and Suspension                                                                King Pin



Packing & Shipping


1.Container

Simplified packaging for container shipments reduces damage and reduces the likelihood and efficiency of errors in the quantity of goods.

2.Bulk ship:

High discharge efficiency, low requirement for terminal construction, more maneuverable and flexible.

3.Ro-Ro ship:

Efficient handling, reduced docking time, increased ship utilization and greater adaptability to carry special cargo and large cargo.

Shipment of Lowboys

Our factory

  Factory



FAQ

Q: Are you a Manufacturer or Trading company?

A: We are trailer manufacturer and we have our own factory in Shandong province, China.You are welcomed to visit our factory.


Q: How do you make the shipment?

A: We will transport the trailers by bulk, ro-ro, or container, and we have possessed long cooperation with ship agencies, they will provide you the lowest shipping fee.


Q: How about your after-sale service?
A: We provide trailers and truck parts, technical support, etc for your all life once we have reached the deal and placed order from us.


Hot Tags: 3 axles lowboy trailer, China, manufacturers, factory, price, for sale
