40ft Low Bed Trailer

40ft Low Bed Trailer

product description Good reputation gooseneck heavy duty excavator transporting lowbed for sale Detailed Images 1. The whole car design structure is reasonable, bearing capacity is strong, the detail is considered by the customer thoroughly 2. This product design adapts to various road...

Chat Now

Product Details

Product Description

Our gooseneck lowboy trailers can carry excavators, dozers, and other construction machinery equipment.

To transport heavy cargo equipment by our trailers, we recommend you choose the high-strength steel lowboy for safety, and avoiding damage to the cargo.

Chengda was established in 2005, and we have CCC BV ISO WMI certificate and export experience, and we can customize your semi-trailer according to your requirements.

In addition, we offer a broad range of low bed semi trailers that can handle special transport requirements of the construction industry.

3 axle lowbed trailer

Specifications

Trailer Model

Lowboy Trailer

Total size

13000*3000*1650mm

Working size(LxWxH)

9000*2500*1300mm

Curb Weight(KG)

9,000

Loading Weight(KG)

60 ton common good or 30-40ton vehicles or machinery with wheels or tracks(concentrated stress on the trailer)

Axle

3*13 ton axle

Wheelbase(mm)

6880+1310+1310

Suspension system

Mechanical Leaf Spring Suspension

Leaf Spring

90(W)mm*16(Thick)mm*10 Layer

10/10/10 leaf spring suspension

The Main Beam

Q345B carbon steel,the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.

Side Beam Q235

20# channel steel

Platform plate

4mm Diamond plate

Tire Type and quantity

11.00R20 12units

Ladder

With Ladder

Traction Pin

2” or 3.5”

Spare Wheel Bracket

2 pieces

Tool Box

1 Standard

Landing Gear

28Ton standard

Brake system

WABCO RE6 relay valve ;T30/30 spring brake chamber;

40L air tanks

Dual Line braking system

Brake air chamber

Six double chamber

Electrical system





1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint

Shipping

Shipped by bulk cargo ship, Roll-roll ship or in container

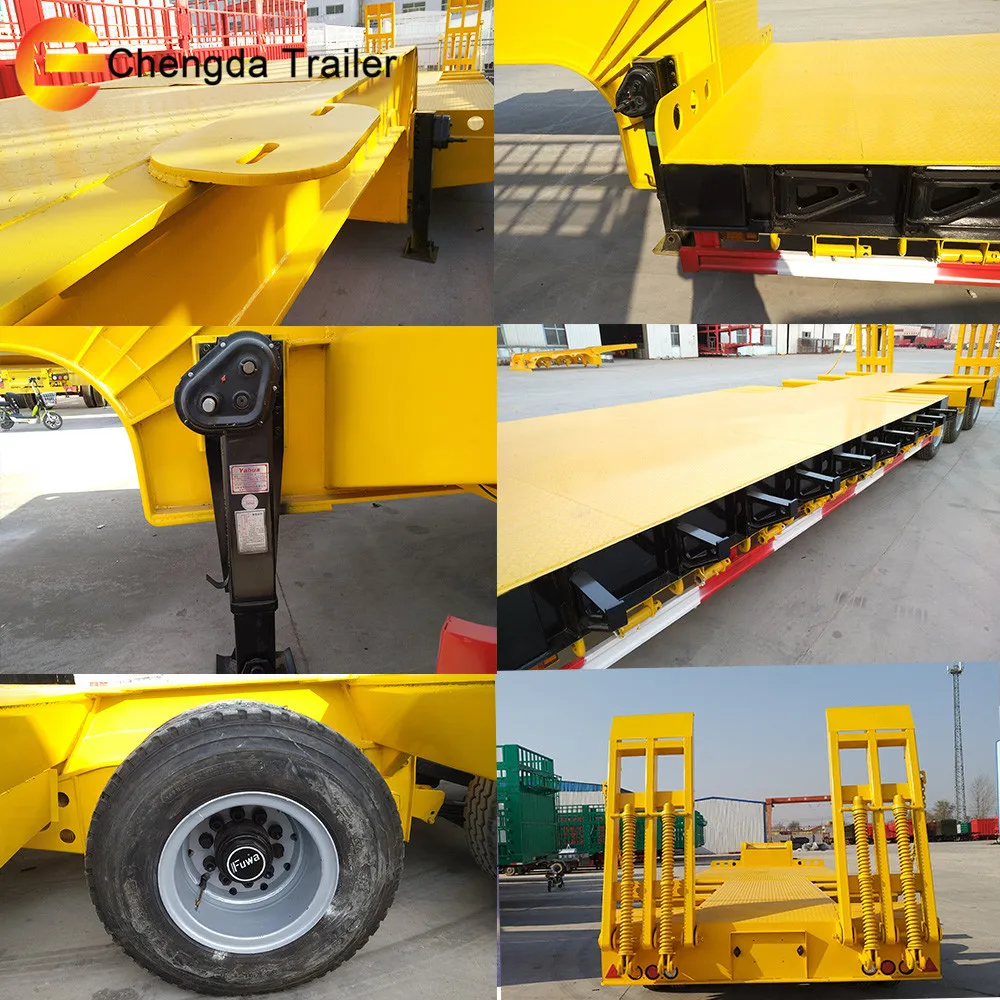

lowbed trailer details

Packing & Shipping

In nude,Polish with water wax before shipment

1 By 40ft/45ft/40fr container

2 By bulk /roro ship

3 As your requirments.

Professional package saves freight cost for customers

Guarantee the firmness and safety of the goods

Lowboy Trailer Packing


Customers Feedback

Customers Feedback


FAQ

Q1: I want the tires are radial tires, is it ok ?
A: We can make the tires as your requirement to suit your country's need.
Q2: What about your products quality ?
A: Quality is our culture! ”Our factory has advanced production technology and management team!
We always attach great importance to quality controlling from the very beginning!
Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 4: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and trailers.
And we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment save money and security.
Q 5: How to guarantee customers get the goods smoothly after they pay ?
A: We had joined the trade assurance. you can place the order by trade
assurance, and the deposit will given to Alibaba. if we don’t delivery products on time, the deposit will return to you.
Q 6: What's the delivery time ?
A: The delivery time is within20 working days after receiving your advance payment.

Hot Tags: 40ft low bed trailer, China, manufacturers, factory, price, for sale
