Tri Axle Low Bed Semi Trailer

Low bed semi-trailer, also known as low bed trailer, lowboy trailer, low flatbed trailer. Generally used to transport construction machinery and large equipment. Generally speaking, many places are limited, especially on some bridges. It cannot be transported using a flatbed trailer, so people...

Chat Now

Product Details

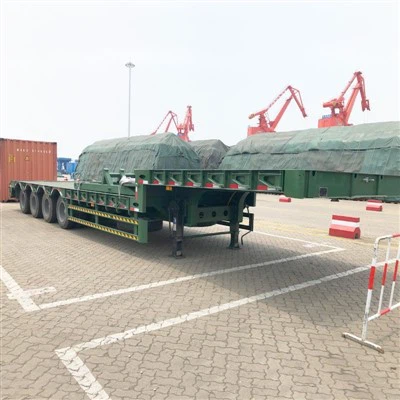

tri axle low bed semi trailer

Details display

details

Application of tri axle low bed semi trailer

A tri axle low bed trailer has a lower chassis and a stronger structure, making it more suitable for transporting extremely high and heavy loads, such as excavators, bulldozers, large machine tools, special vehicles, and large prefabricated steel structures.

If you want to know more details about low bed semi trailers or are still unsure what type and configuration of semi-trailer you need to transport your goods, please feel free to contact us.

application

Specifications

Type	Lowbed Semi Trailer
Dimension(L * W * H)(mm)	13000 * 3000 * 1650
Working Deck(L * W *H)(mm)	9000 * 3000 * 1350
Main Beam	Q345 carbon steel, the height of the main beam is 500mm, upper plate is 16mm, down plate is 18mm, middle plate is 10mm
Platform Plate	4mm diamond plate
Side Beam	20# Q235 channel steel
Axle	3 * 13 Ton Axle, FUWA/ZY/BWP brand
King Pin	50#/90#
Suspension	Common Mechanical Suspension
Steel Spring	90(W)mm * 13(Thick)mm * 10 Layer
Tire Type and Quantity	1100R20 12units
Landing Gear	Standard 28 ton single action supporting legs
Brake	Dual line pneumatic brake, SAE hose and connector, optional ABS
Air Chamber	Six double air chamber

Packaging and transportation

1. The main mode of transportation for tri axle low bed semi trailers is the bulk carrier or ro-ro ship.
2. It can also be transported in containers. However, the goose back and ladder can be removed, and the departure of the operating board and wheel frame should not exceed 11.8m.

shipping

About Us

Established in 2005, Chengda Group specializes in manufacturing a wide range of semi-trailers, providing high-quality products and the best services. We are also the agent of Sinotruk, and our main products are tractors, dump trucks, and tank trucks. We welcome customers from all walks of life to visit our factory and establish a cooperative relationship with us.

our factroy

Customer Cooperation

As a leading manufacturer, we pride ourselves on offering factory direct prices, ensuring that your investment is worthwhile. Partner with us for a seamless and trusted export experience backed by our commitment to quality and customer satisfaction.

customer visit
