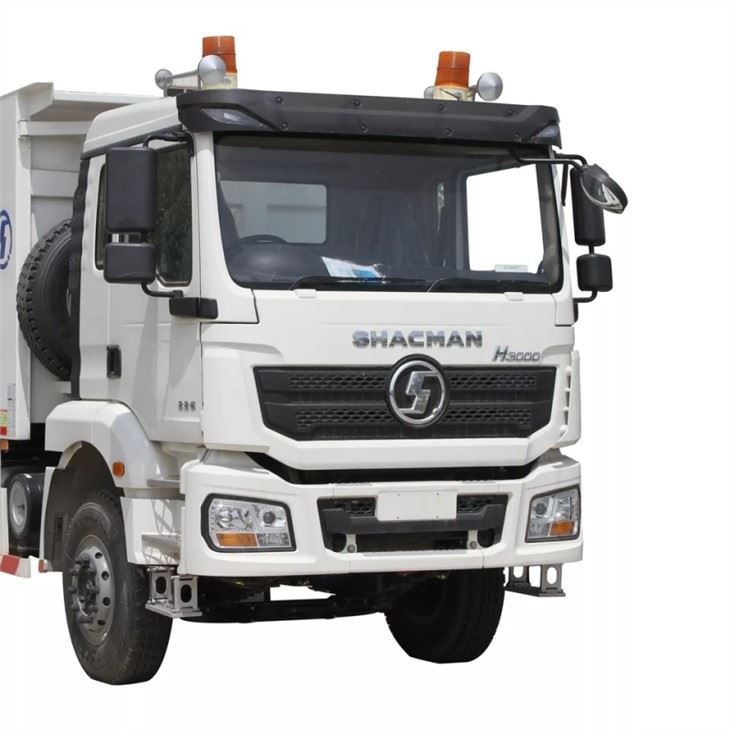

Shacman Dump Truck
Product Details
Shacman is one of the best manufacturers in the field of heavy trucks in China. We pay great attention to the condition, performance, and detail of our trucks. Before delivery to customers, each truck will be strictly inspected and tested to ensure it reaches high quality and good performance. We will provide videos and photos. A good truck will save you time and help you work more easily.
Specification of Shacman Dump Truck
| Model | SX33156V366 | |
| Max. running speed (km/h) | 85 | |
| Drive System | 8x4 | |
| Dimensions(L*W*H)(mm) | Overall | 10329x2490x3450 |
| Dump body | 7400x2300x1500 | |
| Tipper thickness (mm) | Bottom 8, side 6 | |
| Hydraulic lifting system | HVYA front lifting | |
| Approach /departure angle (°) | 28/20 | |
| Kerb weight (kg) | 14600 | |
| Total mass (kg) | 31000 | |
| Wheel base (mm) | 1800+3575+1400 | |
| Overhang (mm) (front/rear) | 1525/2054 | |
| Track width (mm) (front/rear) | 1939/1850 | |
| Engine | WP12.430E201(Weichai engine, Euro 2) | |
| Horsepower | 385 hp | |
| Ma. torque (N,m) | 2060 | |
| Displacement (L) | 11.596L | |
| Gearbox | 12JSD200T-B+QH50, FAST Gearbox | |
| Clutch | 430 Diaphragm type | |
| Steering | ZF technology | |
| Cab | X3000 mid-lengthened Cabin with A/C & single-sleeper | |
| Axle | Front axle | 9.5T MAN technology |
| Rear axle | 16Ton MAN casting axle, final ratio 4.769 | |
| Tire (radial tire) | 12.00R20 | |
| Oil tank | 400L(ALLOY) | |
Packaging and shipping
Naked and waxed, our Shacman dump trucks can be shipped in flatbed containers, bulk, or roll-on-roll.
(1) Wax: Do a wax spraying process to prevent the truck from being corroded by seawater during transportation.
(2) Packing: securely fixed with steel wires to protect the trailer during transportation.
(3) Transportation: Reliable logistics services from well-known freight suppliers make the transportation process safe and timely.
We always use the best shipping solution to reduce shipping costs. If you want to know more, please contact us, and we will give you a satisfactory solution!
Our service
Whether it is pre-sales or after-sales, Hanjinbao always provides customers with the best service.
Before selling, we can do customized production, one of our colleagues will be your loyal server to help solve various problems, and we will provide customers with the best logistics items.
After-sales, we provide technical support, and parts support, our customers can contact us at any time, via telephone\video online support, we have local service in some countries.
About us
Established in 2005, our company is one of the qualified manufacturers of various trailers. Integrating production, scientific research and development, and a professional sales team, all these advantages can provide a full range of services for trailers, semi-trailers, tractor heads, dump trucks, construction machinery, and trailer accessories.
With high-standard machinery and automation equipment, a strong R&D team, and an elite sales team, we have established long-term business relationships with many world-renowned companies, such as Sinotruk\Shacman\FAW\Beiben, and so on. In addition to a mature after-sales system, we can also meet the different needs of customers at home.
